SmartNav 4 false contact repair

Geschrieben von: Stefano Ficacci
  • Kommentare: 1
SmartNav 4 false contact repair

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Sekunden

Einleitung

When the unit shows erratic behavior or the device isn’t installing program s properly, you may look for a shortcut between it’s internal components.

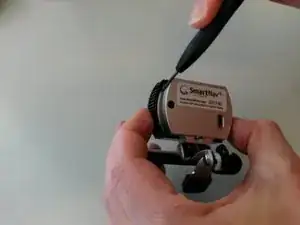

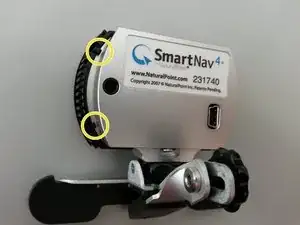

  1. l6JVuQIdWLRMCbMn
    l6JVuQIdWLRMCbMn
    MUZIrXCOpOSSVvtO
    ghZQPLkZ1mTqI2d5

    • Gently open the four plastic tongs with a small slotted screwdriver, you need to keep the black and silver plastic gently pulled apart.

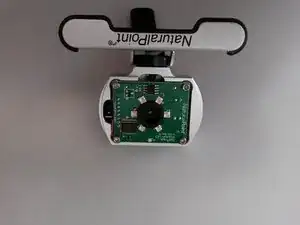

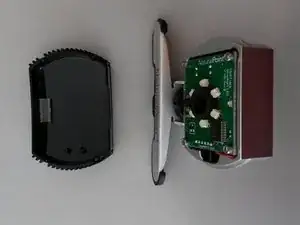

  2. pAwUVgvODiwX5q6E
    pAwUVgvODiwX5q6E
    jnipeI2IF6FVOFk2

    • Once separated, there are four hex screws to be removed.

    • I guess the size is 5/64” but I’ve used a 2 mm before...

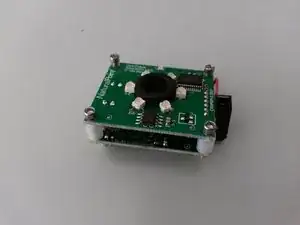

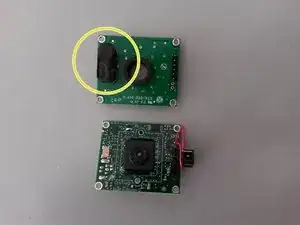

  3. 2FwYTjXoljAcycwq
    2FwYTjXoljAcycwq
    rJCjJKqNIwDVnM2s
    tyGaChh4CPoCPv5K

    • Remove and separate the components

    • The problem is located in the black film between the boards which is clearly pinched through

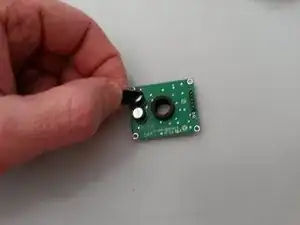

  4. TfPPw66KCdIB4XXV

    • Remove the adhesive, if present.

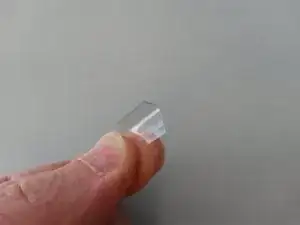

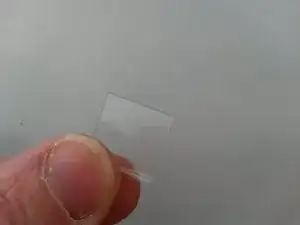

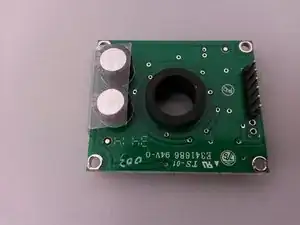

  5. URW2AEFgOlkPuORQ
    URW2AEFgOlkPuORQ
    wgMIstV1D4XCXCCL
    wUNdrcWPjqfxNq3V

    • Prepare a new divider. I got this piece from a 0.4 mm rigid plastic.

    • I folded the plastic to 90°.

    • I’ve placed and dimensioned the plastic in order to fit the position in the picture.

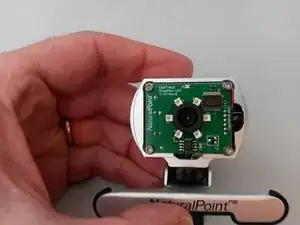

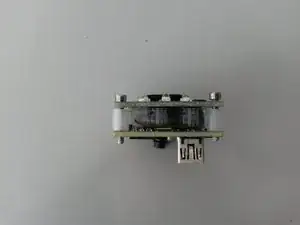

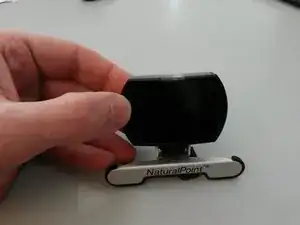

  6. nVT3iYWiZuNUA3ms
    nVT3iYWiZuNUA3ms
    k5eVnqMxrQF2XGOo
    HQJZGBdXNJPBYRx3

    • That’s all folks! Next steps would be to re-assemble it as it was before dissasembly.

    Does this actually help

    shaneags -

Abschluss

To re-assemble your device, follow the steps in reverse order.
