Einleitung
Many water heaters / kettles use systems from Strix. The one I got is sold by German company Ritter.
Be extremely careful when operating the PCB out of the box as it may contain voltages of up to 320VDC!
Werkzeuge
-
-

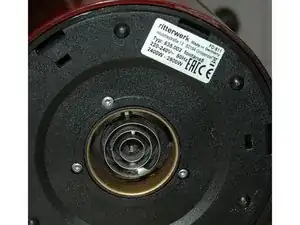

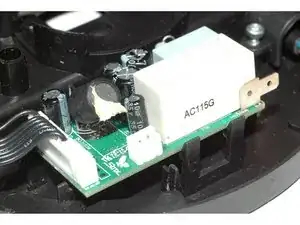

Using Torx screwdriver, open kettle base and remove PCB
-
One can see the five contact rings. From inside they are: Live, Sensor +, Sensor -, Neutral, Ground
-
-
-
The PCB is not conformally coated, so water splashing around the base can potentially enter and cause damage.
-

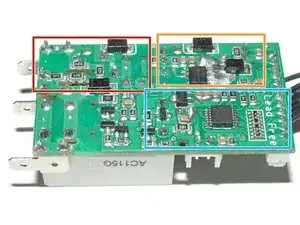

The design of the PCB is a bit unfortunate as the high voltage switching regulator is very close to the LDO and microcontroller.
-
Line input
-
Switching regulator
-
LDO and MCU
-
-
-

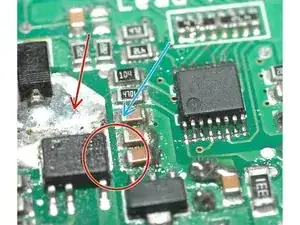

Red circle: Isolation gap between 320VDC and 4.4VDC is about less than 1mm
-
Red arrow: Pulsed 320V (220VAC) switching regulator
-
Blue arrow: 4.4V LDO supply voltage for MCU
-
-
-

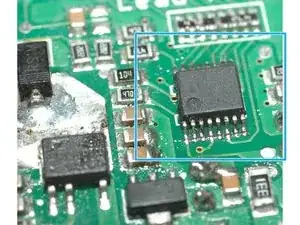

Using hot air, desolder the TSSOP16 microcontroller labeled "Y12"
-
Unfortunately I was not able to source the microcontroller allone yet. But I could order the entire board for 25€ which is better than nothing. Thank you Ritter
-
To reassemble your device, follow these instructions in reverse order.
