Rival CM4015 Lid Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

The Rival single cup coffee maker has a plastic lid that is prone to breaking. The plastic hinges can easily break if the lid is pushed too far back. The lid is held in place by plastic clips and plastic tabs that act as a hinge.

  1. tdYPLl1kUf2Ofsdd
    tdYPLl1kUf2Ofsdd
    Wp4ogJhFALyUsbxO

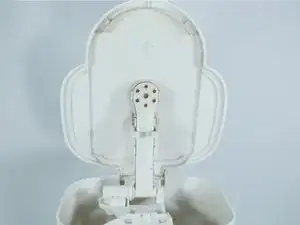

    • Lift lid up to an open position.

  2. LUSnS5Y1NToh4RYX

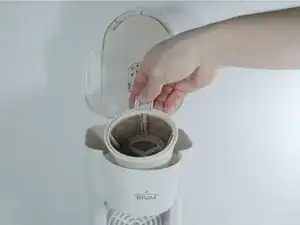

    • Remove the coffee filter by lifting the filter up and out of the device.

  3. AOSCmkXTmLMBWjjK
    AOSCmkXTmLMBWjjK
    gyJRJccGmW6qIqM1
    tRS2GkdZHVmatO1G

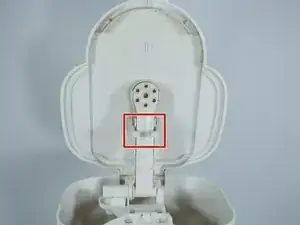

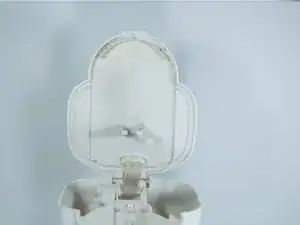

    • Locate the plastic clips keeping the lid in place.

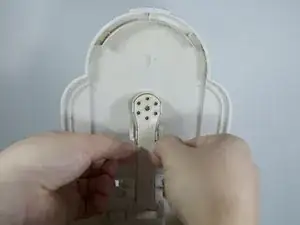

    • Pull the clips apart to free the lid.

  4. iytsxOwtMNjStlyV
    iytsxOwtMNjStlyV
    OQw11Kf5PO44blwG

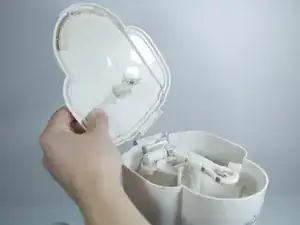

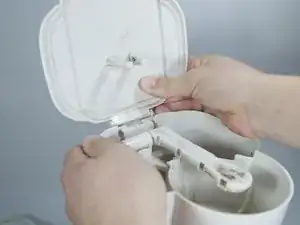

    • Lift the lid up in order to separate it from the coffee maker.

    • It may take some force to detach the lid.

Abschluss

To reassemble your device, follow these instructions in reverse order.
