Einleitung

First, make sure that the device is unplugged from the socket. Before replacing the power button you must unscrew the metal base plate. After doing this all you need to do is unscrew the button on the inside of the device and pry it out of the slot on the body of the device. Pry with enough force to detach the button but not so much that it breaks the plastic button.

  1. on5ASLa4WnEjqPWL
    on5ASLa4WnEjqPWL
    gK6FOHsXQuhOLUT3

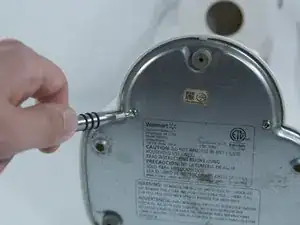

    • Remove the three 16 mm tri-point screws from the base plate.

  2. wWsAyxTILAyrIJKN
    wWsAyxTILAyrIJKN
    earsd2KGdiDgxrOV

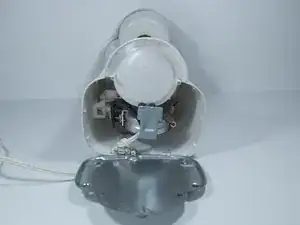

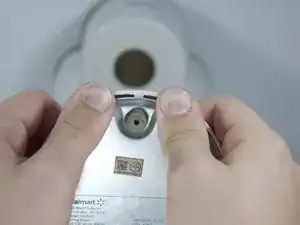

    • Remove the base plate by pressing the plastic body away from the metal plate with your thumbs.

  3. 4Mbyr2HldRknwaVJ
    • Remove the 8mm Phillips screw that attaches the power button to the inside of the coffee maker.

  4. XB4J2bhipQJT5UsG
    XB4J2bhipQJT5UsG
    ru356uC5AERyRZhB

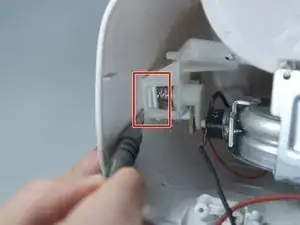

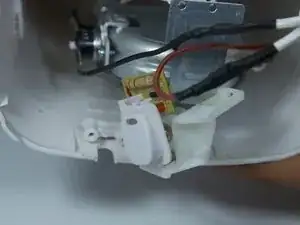

    • Use a flat head screwdriver to pry the power button from its slot in the body of the device.

    • Make sure the tool is pressed securely under the plastic clip, in order to not break it.

  5. YnsXYPKuAUVWq2qw
    YnsXYPKuAUVWq2qw
    HZOA2lYcpEHVeWto

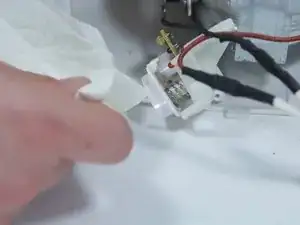

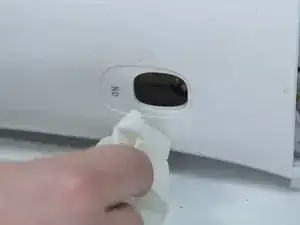

    • Clean both the button and its slot before replacing the power button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
