Rival CM4015 Power Cable Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Before beginning, double check that you have disconnected the power cable from the outlet. You will be taking out the base plate and replacing the power cable. You will need to cut the power cable and solder on the new one.

  1. on5ASLa4WnEjqPWL
    on5ASLa4WnEjqPWL
    gK6FOHsXQuhOLUT3

    • Remove the three 16 mm tri-point screws from the base plate.

  2. wWsAyxTILAyrIJKN
    wWsAyxTILAyrIJKN
    earsd2KGdiDgxrOV

    • Remove the base plate by pressing the plastic body away from the metal plate with your thumbs.

  3. eoyhURu1X3PXtbpE

    • Remove the two 8mm Phillips screws from the plastic body.

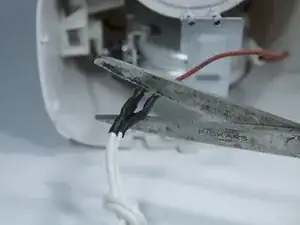

  4. TaWrUfSktFfF21BJ

    • Pull the cord and cut the black and red wires across the black heat shrink.

    • Be careful when soldering the new power cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
