Einleitung

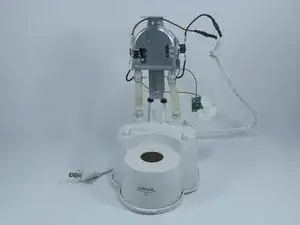

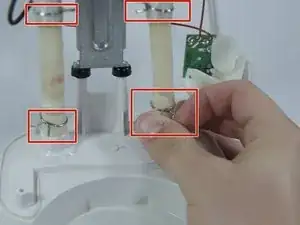

The Rival single cup coffee maker has water tubes that a prone to leaking. If boiling water runs through the tubes for too long, they can come loose and leak water. The tubes are held in by a simple spring that can be loosened by hand.
-
-
Remove the base plate by pressing the plastic body away from the metal plate with your thumbs.
-
-
-

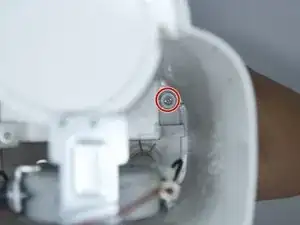

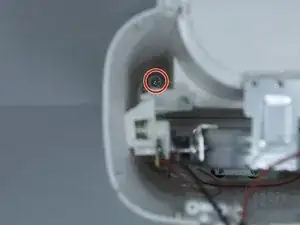

Remove the 8mm Phillips screw that attaches the power button to the inside of the coffee maker.
-
-
-
Use a flat head screwdriver to pry the power button from its slot in the body of the device.
-
-
-

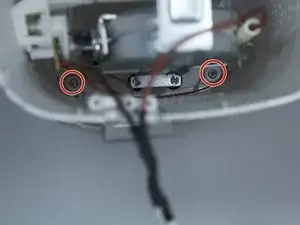

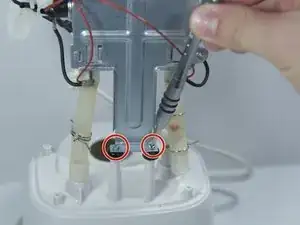

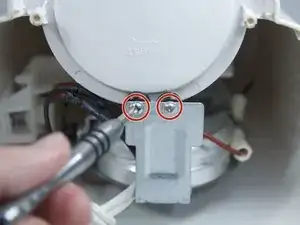

Remove the two 8 mm Phillips screws from the chassis of coffee maker.
-

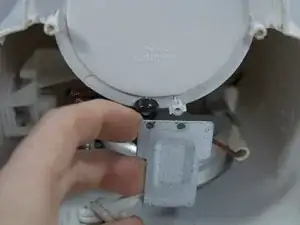

Pull back the metal backing from the plastic body.
-
-
-

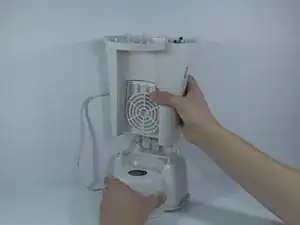

Flip the device upside down and remove the outer plastic body from the device by pulling straight up.
-
-
-

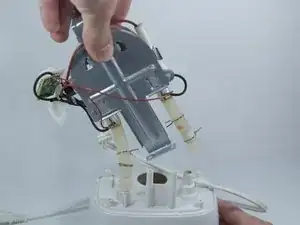

Bend the heating element back and forth to wiggle the water tubes loose from the plastic.
-
-
-
Remove the two rubber water tubes from the heating element by firmly pulling each at a 90 degree angle from the socket.
-
To reassemble your device, follow these instructions in reverse order.
