Rival Mini Chopper MC-67BL Power Button Replacement

Geschrieben von: David Otsu
  • Kommentare: 0
Rival Mini Chopper MC-67BL Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 Minuten

Einleitung

This guide will help you remove the power button.

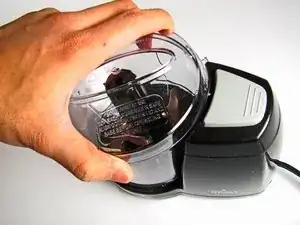

  1. ZZ2MWXcSlmw11DLA
    ZZ2MWXcSlmw11DLA

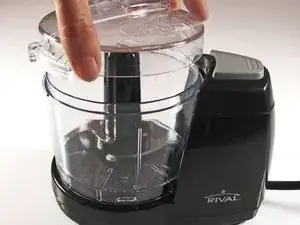

    nDyULjKnuEdOsLIs

    • Twist the plastic lid counterclockwise to unlock it.

    • Lift the lid to remove it from the container.

  2. TT2xBoWAhBFgewmy

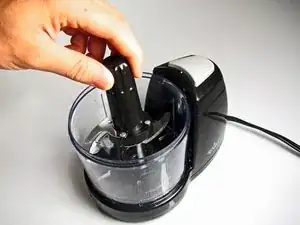

    • Carefully remove the blade from the container.

    • For reassembly, the teeth on the metal shaft line up with slots on the inside of the plastic hole.

  3. y1pTMTZSvKOItTKK

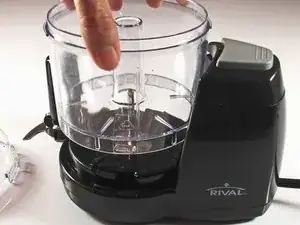

    • With your hand, twist the container counter-clockwise until it unlocks from the base. Remove the container by lifting it straight up.

  4. dexAjRThHKuqmKXV

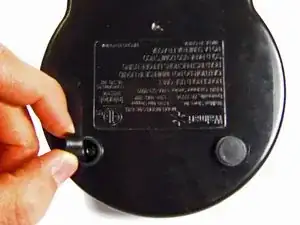

    • Use your fingers to pry out the two rubber feet from the bottom cover of the base.

    • The two feet furthest from the button tower contain screws. The other two feet do not.

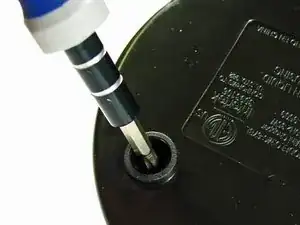

  5. sYOk61BLa5KSYSJD
    sYOk61BLa5KSYSJD
    yHX1rA2HuX1YA6c1

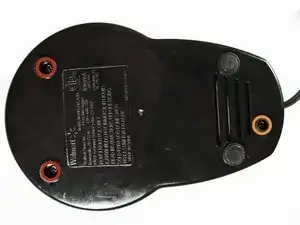

    • Use the Phillips #2 screwdriver to unscrew the two 12.7-mm screws underneath the rubber feet.

    • Use the same screwdriver to unscrew the 15.88-mm screw from the back of the chopper.

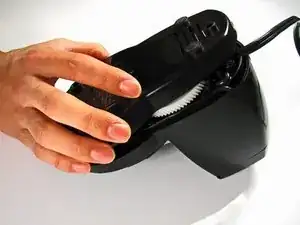

  6. dUaYsUmIXeUqf2BC

    • Firmly lift the bottom cover off of the base.

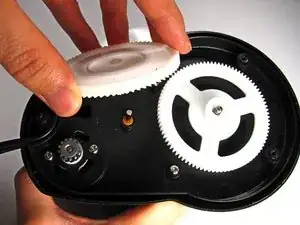

  7. yLVELOi1TvgYvhYS

    • Remove the smaller white gear by lifting it up with your hand.

  8. VFfodJFSEGH3EBJB
    VFfodJFSEGH3EBJB
    UPj6pFVevRqbBVcs
    pGmLs2FkSm2mrGSo

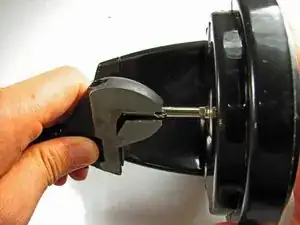

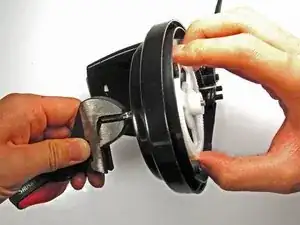

    • Use a pair of pliers or any other clamping tool to securely hold the blade-shaft that sits above the base.

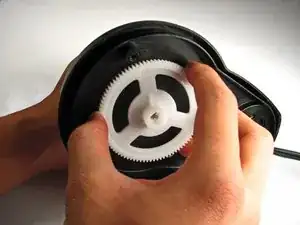

    • Grab the gear with your other hand and turn CLOCKWISE. Unlike most screws, the gear is reverse-threaded to allow the blade to spin.

    • Continue turning the gear until completely removed from the blade-shaft.

  9. IRG1wZlGFbZZKHXd

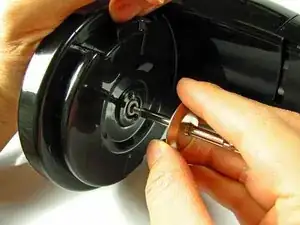

    • Use your hand to firmly pull the blade-shaft from the base.

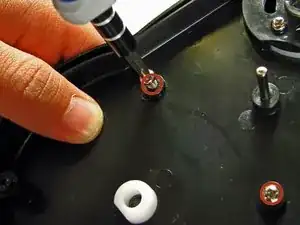

  10. YkBx2ldY5laOytpU

    • Using Phillips #2 screwdriver, unscrew two 12.7-mm screws in the middle of the base.

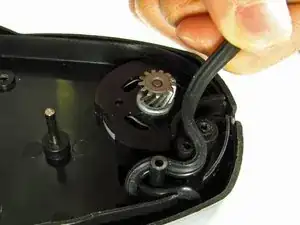

  11. TJGMIoMMqoiFfuWM

    • Unwind power cord from the base pegs.

  12. nO3XVxKJsfPSgn3N
    nO3XVxKJsfPSgn3N
    AGsK32yTYL2Gf5Ax

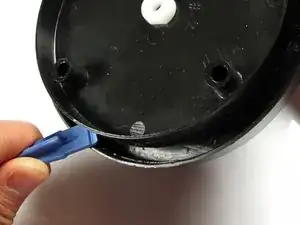

    • Use the plastic opening tool to pry open the base from the main body.

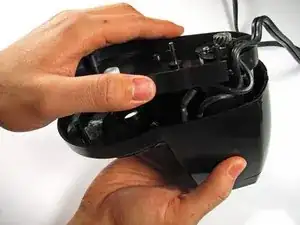

    • These two plastic prongs are pressed fit into the base. It may take some effort to pry the base completely off.

    • Once freed, lift the base panel from the main body and set it aside.

  13. BUu1HUchhEsQe16g
    BUu1HUchhEsQe16g

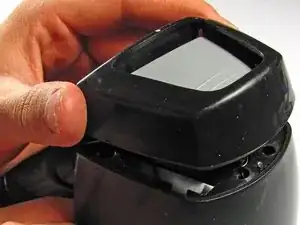

    OmpHaSAEtcXVoaZh

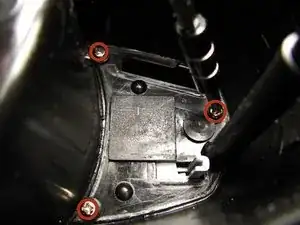

    • Use a Phillips #2 screwdriver to remove the three 9.53-mm screws from inside the main body.

    • Next, turn the device upright and lift the upper casing from around the button gently.

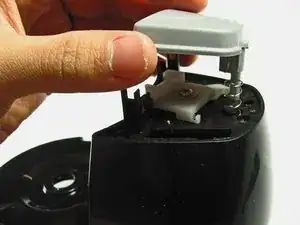

  14. gfqKdMXbWIBDuFIq

    • Remove the button by simply pulling it up.

    • Don't lose the spring under the button! Without it, the blender will not function.

Abschluss

To reassemble your device, follow these instructions in reverse order.
