Roccat Tyon omron switch Replacement

Geschrieben von: marc balemboy
  • Kommentare: 3
Roccat Tyon omron switch Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

If your mouse start to register double-click when you click only once, this might be a worn switch.

  1. WeyFrQAEFXxwrKa2
    WeyFrQAEFXxwrKa2
    PAZuxEUGCVilqokY
    GynKxqexIb6EiRJt

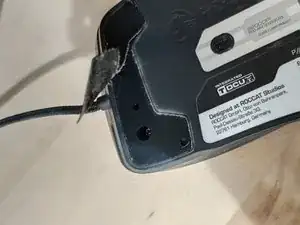

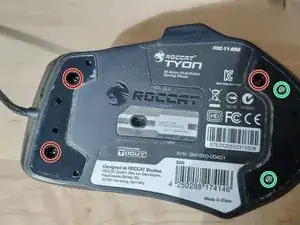

    • All screw are hidden below the mouse

    • Peel off the mouse pad to uncover 5 of the 6 screws

    • The last screw is in a hole under the sticker. You don't need to remove the whole sticker to uncover it.

  2. s4YYZNUfLSDU642A
    s4YYZNUfLSDU642A
    uO3bERSZLYoSFK3H

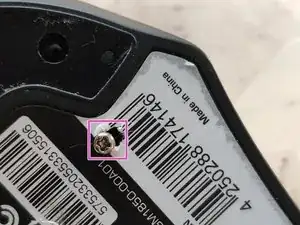

    • use the screwdriver to remove all the screws

    What screw driver is used to open it?

    Ángel -

    it’s all philips screws, i used a size 0

    marc balemboy -

  3. YZTSCb2ZTZjgTGdc
    YZTSCb2ZTZjgTGdc
    UgQNjydTNYbxH3aW

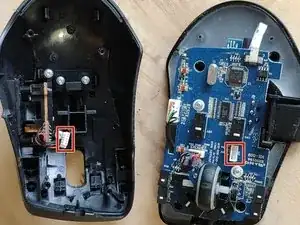

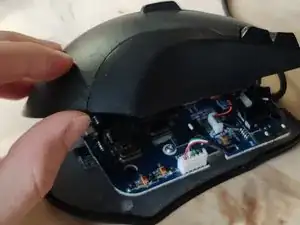

    • Carefully remove the outer shell, the two halves are still connected by wires.

    • remove the white wire connector carefully

  4. D3DZPSAUsJ4UR4AT
    D3DZPSAUsJ4UR4AT
    oiYjXtIqpIEpWaSM
    ilVPe4egnhgGBpow

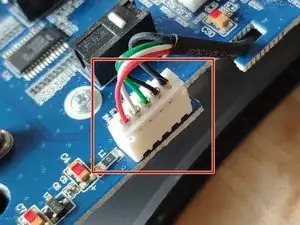

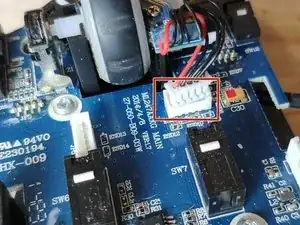

    • unplug the remaining connectors

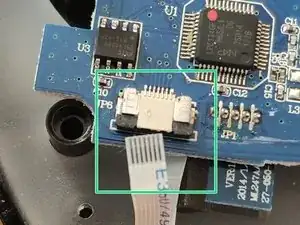

    • carefully pull-down the Ribbon cable to unplug it

  5. 16QKJ56wH1RUFSAM
    16QKJ56wH1RUFSAM
    vkwnWP4OyOXlugTZ
    WkT3SKIhp6RVAdSl

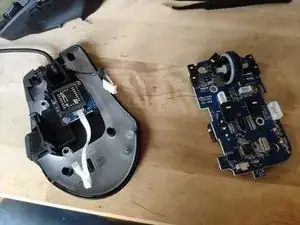

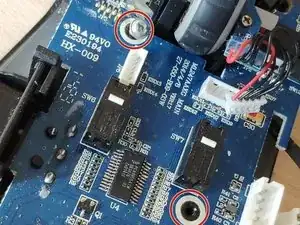

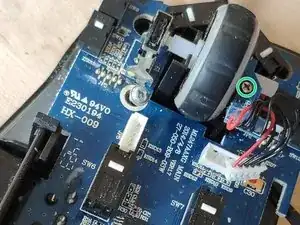

    • remove the last screws and pull the board free

    • the mouse wheel LED assembly is a separate piece you need to unscrew.

  6. Gwt3XZMVHSgySWt2
    Gwt3XZMVHSgySWt2
    jyIQ5SGia24IP2Vp

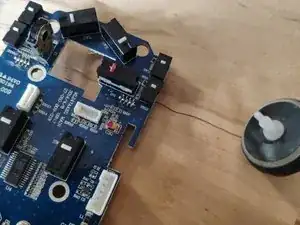

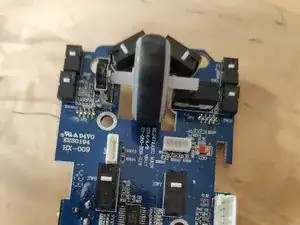

    • you need to pull the mouse wheel to the right to get it out

  7. pLZwZRkqTWPlpMRZ
    pLZwZRkqTWPlpMRZ
    OEAivLTunlhmwuDc

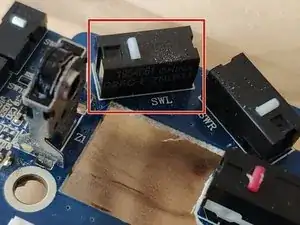

    • I want to change the left switch.

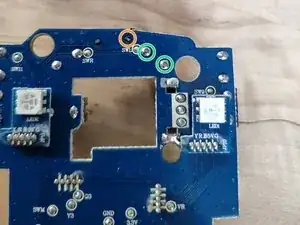

    • flip the board to unsolder the switch.

    • Only two legs are soldered, this is the third one

  8. cWJkNbXZLsOVFJVG
    cWJkNbXZLsOVFJVG
    x4GwVoZKmU2RXyFr

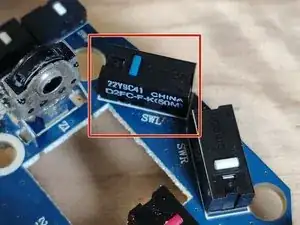

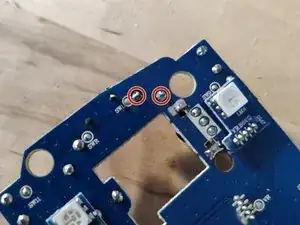

    • The new switch replace the old one not working.

    • The button should be on the left

    • I used a slightly different switch (D2FC-F-K(50M)). The official one is a D2FC-F-7N(RT)

    resource to decide on which switches to choose for a certain feel or noise

    mouseclub.co/pages/mouse-switch-guide

    THED4NIEL -

Abschluss

To reassemble your device, follow these instructions in reverse order.
