Rocketfish RF-WHTIB-A Receiver LED Light Chip Replacement

Geschrieben von: Caitlin Charlton
  • Kommentare: 2
Rocketfish RF-WHTIB-A Receiver LED Light Chip Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

An LED light not working on the Rocketfish RF-WHTIB-A receiver does not necessarily mean the entire device is broken. It could indicate a problem with the LED light chip inside the device, which controls the LED light function. This guide will direct users step by step to replacing a faulty LED light chip.

  1. ZrDmPUadBSFjMG1T

    • Remove the 4 rubber tabs on the bottom side of the receiver.

  2. HQSVlElDJP2clWOF

    • Unscrew the four 12 mm screws on the bottom side of the receiver.

    • Use a Phillips #1 screwdriver for this step.

  3. h3KGdYGK5wEjTppr
    h3KGdYGK5wEjTppr
    RrNb4AUgwcsib4dZ

    • Remove top casing from the receiver.

    • The receiver top casing is difficult to remove. Internal clasps may have to be broken in order to remove the top casing (this will not effect the device's function)

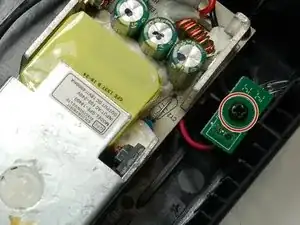

  4. 4gQWAH6CAfnFTiFk
    4gQWAH6CAfnFTiFk

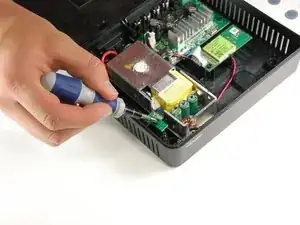

    KECOd5iwq3EvNbAU

    • One 10 mm screw is securing the LED 14.14 chip.

    • Unscrew the chip.

    • Use a Phillips #1 Screwdriver for this step.

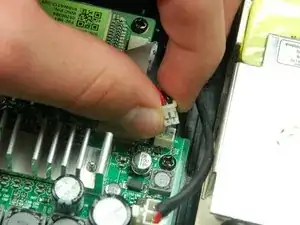

  5. 1ItfOfpbmnpCFXDF

    • Using your fingers, gently pull the LED plug out of the mother board.

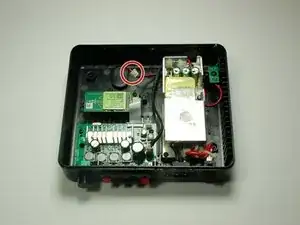

  6. cZUOv1MIruBAyUH6

    • Gently feed the LED wire under the power supply to completely remove it from the sender.

    • Remove the faulty LED 14.14 chip from the receiver.

    • You may want to use the tweezers to help pull the LED wire out from beneath the power supply.

Abschluss

To reassemble your device with the new LED light chip, follow these instructions in reverse order.

Once the receiver has been put back together, plug in the device and initiate the connection mode between the sender and receiver to ensure the new LED light chip has been properly assembled.
