Roku 3 Motherboard Replacement

Geschrieben von: Samantha Miller
  • Kommentare: 4
Roku 3 Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

25 Minuten

Einleitung

All individual parts can be replaced on the motherboard as well. Please see additional guides if needed.

  1. BKeyQNTMAKaMQqRg

    • Place the Roku 3 on the table face down and orient it so you can correctly read the writing.

    I had face the same problem in my Roku Streaming Device, so I looking for a solution and I found in internet, https://roku.techpal365.com, this website have the solution for your issues even you can also call to their toll free number.

    Praba Karan -

  2. LQxVIsXNmR4SOJYn
    LQxVIsXNmR4SOJYn
    KFPp3ZiIMWEAhqqD
    Zs6qVAyxXBW6r3Sr

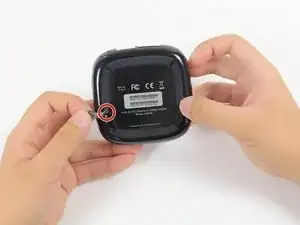

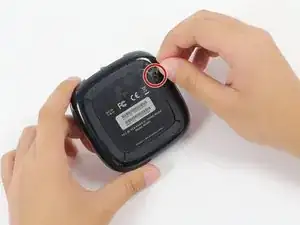

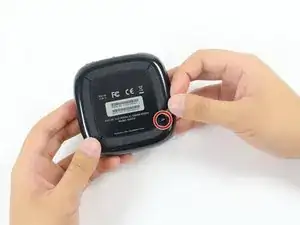

    • Pull back the rubber protection in the top right corner to locate the screw.

    • Repeat with the bottom right corner and bottom left corner.

  3. gCO6GIrw4wK4WWaN

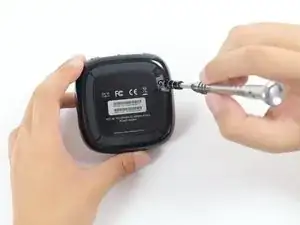

    • Remove the 9 mm screws from the three corners with a Hex 1.3 Screwdriver.

  4. OiTktGAUwQemimol
    OiTktGAUwQemimol
    NEdfmwCXN6ZEAMMT

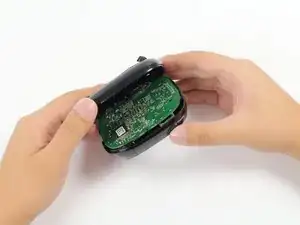

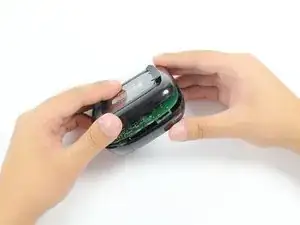

    • Open the device by gently lifting the bottom half away from the top half of the device.

  5. YTkJYqkoLYJEuN6U

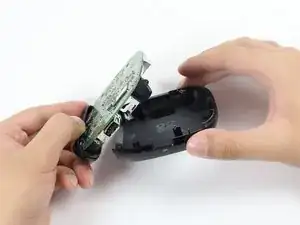

    • Use your fingers to carefully lift the motherboard from the top half of the device.

  6. ZWJKqTSeZsYJXPTH
    ZWJKqTSeZsYJXPTH
    YKT6wIPJnVZKLW4U

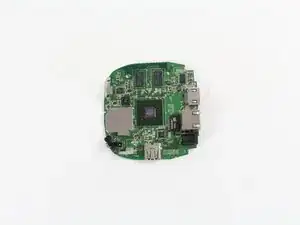

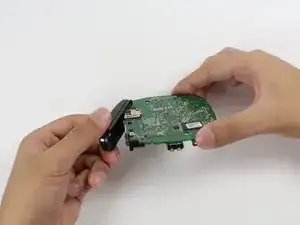

    • Pull away the IO shield from the motherboard using your hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.
