Roku 3 Remote Control Motherboard Replacement

Geschrieben von: Isobelle Espiritu

Kommentare: 7

Roku 3 Remote Control Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

20 Minuten

Einleitung

If you have already tried restarting and re-pairing your remote and it is still not working, you may need to replace the motherboard.

Werkzeuge

Schritt 1

Flip the remote over so that the buttons are facing down and the end with the wrist strap is nearest your right hand.

Thank You ! I needed some help getting the back off. I was getting so upset and found this site. The back wouldn't come off but watched this and got it off. YA me ! Not a handy person.?

Linda Walker -

Schritt 2

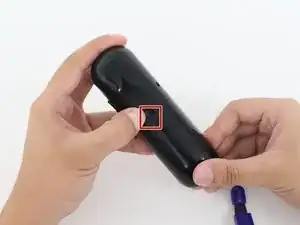

Press and hold the black tab above the battery compartment.
While holding down the tab with your left hand, slide down the battery compartment cover with your right hand to remove it.

Is the black tab also the mute button?

J-Lyn Estrella - 26/01/21

Schritt 3

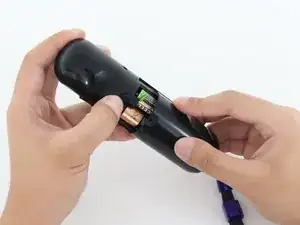

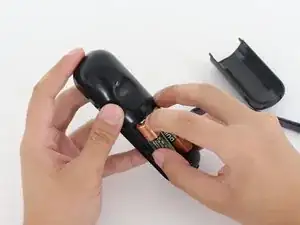

Remove the batteries by placing a finger on one end of the battery and pushing downward while pulling the battery out.

Schritt 4

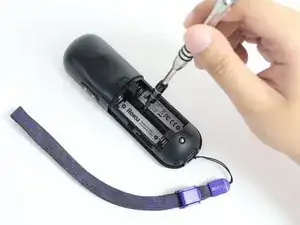

Unscrew one 7 mm Phillips #0 screw from the center of the battery compartment.

Schritt 5

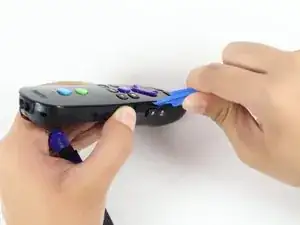

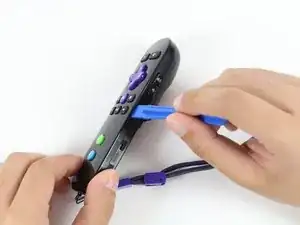

Gently pry open the remote using the plastic opening tool.

Schritt 6

The remote buttons, sensors, and motherboard are not attached to anything inside the remote. Take apart the remote with caution to ensure these components do not accidentally fall out.

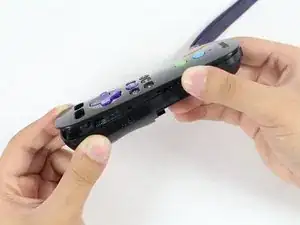

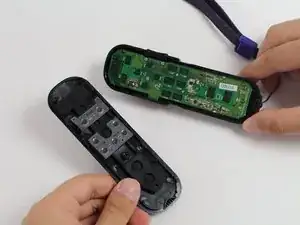

Separate the top and bottom of the remote casing.
Gently place each half of the remote onto a table so that the exteriors are face down.

Schritt 7

Set aside the half of the remote with the buttons.

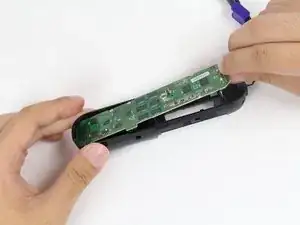

Take the the other half of the remote with one hand and remove the motherboard with your thumb and forefinger of the other hand.
