Roku XD 2050X Motherboard Replacement

Geschrieben von: William
  • Kommentare: 0
Roku XD 2050X Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we'll show you how to replace the motherboard in your Roku XD 2050X.

  1. JMr55JJrLqtxvU2h
    JMr55JJrLqtxvU2h
    rYc5yXRDM5AP1WFw
    1USoByoaumVnSFl5

    • Ensure the Roku XDis unplugged.

    • Take care when handling components. Circuit boards, soldering points, and other areas may have sharp points.

    • Turn the device upside down.

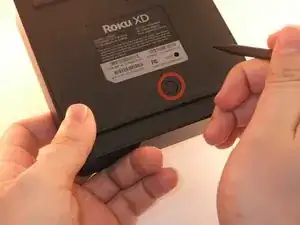

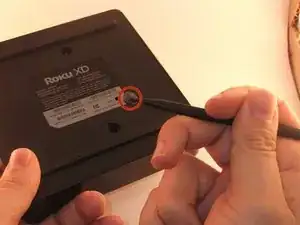

    • Remove the two rubber pads using a plastic spudger.

  2. qk1gdM5KrlTIvfee
    qk1gdM5KrlTIvfee
    T5IGX2tqqqYAlmdW

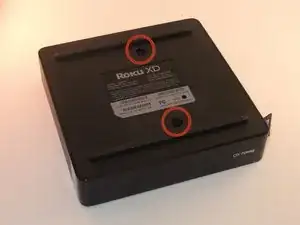

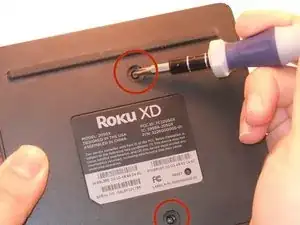

    • Remove the two Phillips #1 9mm pan-head screws.

  3. aF51LrqZZXGDS1xB
    aF51LrqZZXGDS1xB
    ri6JPXDqWXCukMOC
    yL23KXAHOcAulx6u

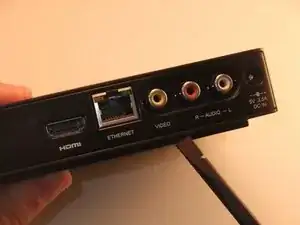

    • Insert spudger between upper and lower frame underneath the port access.

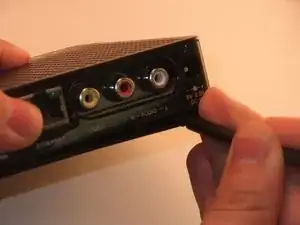

    • Guide spudger around to loosen upper and lower frame to pry frame apart.

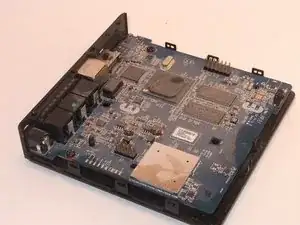

    • Gently remove upper frame.

  4. STJNIN4mhDikK1fD
    STJNIN4mhDikK1fD
    rGqTjAYH6XjwgS1n

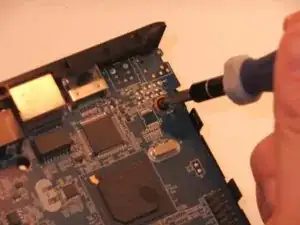

    • Remove the two Phillips #1 8mm pan-head screws.

  5. BehtYBwxw5ugqOxI

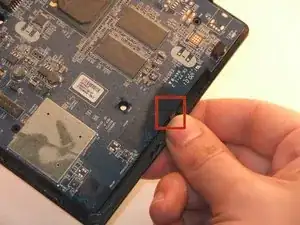

    • On the side of the board opposite the ports, find and tilt back the tab securing the board in place.

    • Lift the motherboard out of the lower frame.

  6. AQaDkeRi4hUy2K3P

    • Replace the faulty motherboard with the new motherboard.

    • Be sure to dispose of the faulty motherboard properly. Recycle if possible!

Abschluss

To reassemble your device, follow these instructions in reverse order.
