Roland G-800 Power Board Replacement

Geschrieben von: Andrew
  • Kommentare: 0
Roland G-800 Power Board Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. eNaBmvcy2qakABja

    • Turn the keyboard upside down to access the screws

    • Remove 15 Philips PH2 screws

    • Don't worry about the other 16 screws, they hold the keys to the bottom case.

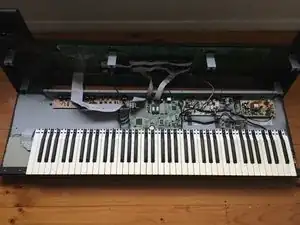

  2. HWS5I1EvDGdcC3Qb
    HWS5I1EvDGdcC3Qb
    cOKopnU1RhsnXEWI

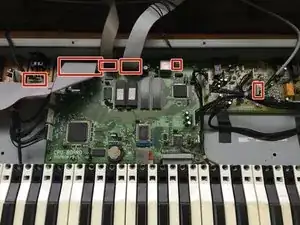

    • Turn the keyboard upright again and lift the top cover from the front

    • Remove 6 connectors

  3. RcjZ356FE3sPodyM
    RcjZ356FE3sPodyM
    aQ65S2bQmSDpYjlI

    • Remove the power output connector

    • Take note of the order of the wires here. In this case we have the white (neutral) wire on the left, but always double check when working with mains wiring.

    • Loosen the two flathead screws holding the mains wires to release them

  4. 6nVoIv3PEHPerWCv

    • Remove 4 PH2 screws holding the board to the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
