This guide will show you how to replace the toe stop on your roller derby skates. We use one of Epic Skates’ Epic Classic Black Quad Rollers Skates (SKU: ClassBlk ) to demonstrate the steps. The kind of toe stop used in this guide is referred to as a round toe stop. This kind of toe stop is often confused with toe plugs; however, toe plugs are not meant for breaking like toe stops. The guide works with other similarly shaped toe stops that do not have a hole and bolt through the center of the toe stop. We do recommend cleaning your skates before and while replacing the toe stops. Click here for more details regarding cleaning and care.

Werkzeuge

Ersatzteile

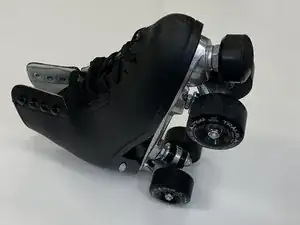

  1. Pm3KTMqPRfd2QjgK
    Pm3KTMqPRfd2QjgK
    6txqkd5IcFmUOONj
    • Place the roller skate so the heel is touching the table and the toe is pointing up.

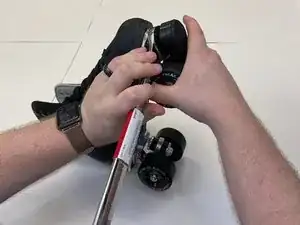

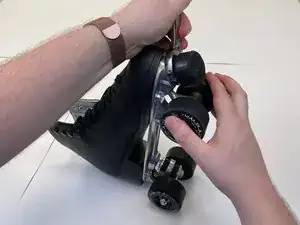

  2. KulvcghCiIMUXLcS
    KulvcghCiIMUXLcS
    hgxQrmyWoJsU5uhJ
    • Loosen the nut with the wrench.

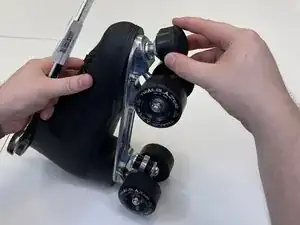

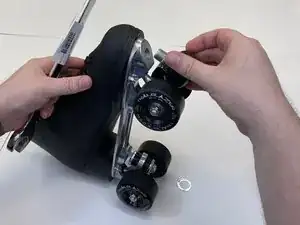

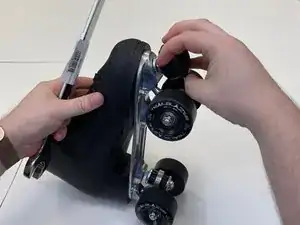

  3. qGT5xlIjCRGOCcIH
    qGT5xlIjCRGOCcIH
    JCkF3g2wnQmAJGPF
    i2k4XsApMThMqVWx
    • Twist the toe stop off with your hand.

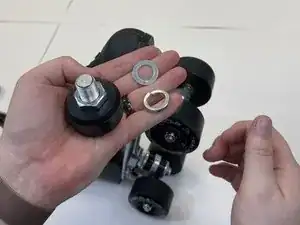

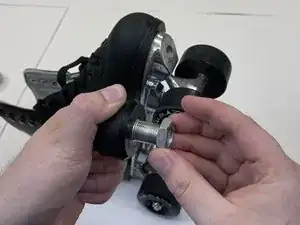

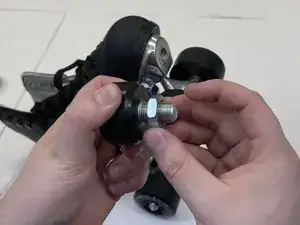

  4. L3nxNG2PDirfmfHe
    L3nxNG2PDirfmfHe
    UbXZOSWlePwgVGbV
    MUH6d1x21dQTg6uE
    • Twist and remove the washer, split lock washer, and nut with your hand.

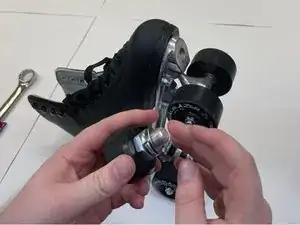

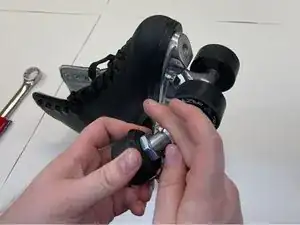

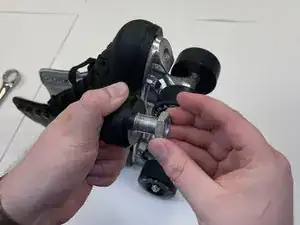

  5. roLRSCpnrhZoE1YK
    roLRSCpnrhZoE1YK
    xUyEtbNdDD2p1lFd
    64CfV5SinXPtYL3e
    • Place the nut, split lock washer, and washer on your new toe stop.

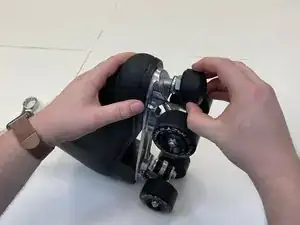

  6. IH2EHRoFSahpZHiS
    • Align the thread of the toe stop screw with the thread on the skate.

    • The threads on the bolt are a soft metal and can bend, chip or break if you force the thread when screwing the toe stop back on.

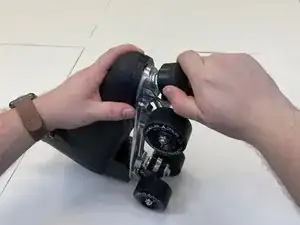

  7. kTTGikxNXkyMYqMS
    • Twist the toe stop back on with your hand.

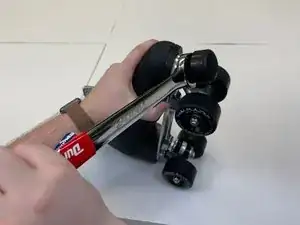

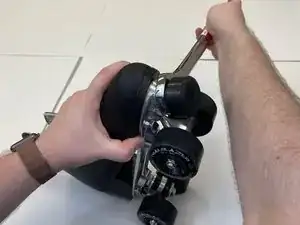

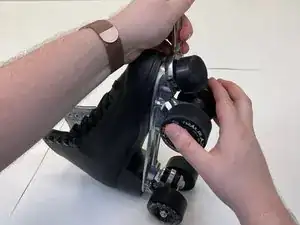

  8. NLvnwVfDcnP2mowm
    NLvnwVfDcnP2mowm
    WJaBplnUZ2DcuDC2
    JFJbUhSgolpUmoBa
    • Tighten the nut with the wrench to secure the toe stop in place.

    • Do not over tighten the nut as this can damage the threads on the toe stop or the skate.

    • You will know it's tight enough when you can no longer twist the toe stop off with your hand.

Abschluss

Repeat these steps for each roller skate you wish to replace the toe stop on.
