Einleitung

Need to replace those rubber cushions and washers on the trucks of your classic roller skates? No problem. The only tool required is a 14 mm wrench or ratchet and socket. Replacement cushions and washers are available online or at any respectable skate shop.

  1. 2PnNQKymUBMBlg4g

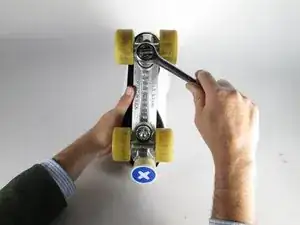

    • Using a 14 mm wrench, loosen and extract the bolt from the base plate.

  2. VJYILro6aynq1Iwm

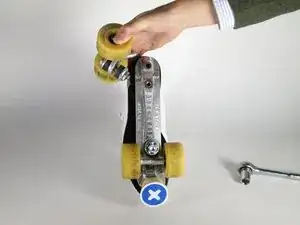

    • Once the bolt is no longer in the base plate, lift and twist the entire truck assembly from the skate.

  3. WqHTVhOFPFpuOmKf
    WqHTVhOFPFpuOmKf
    1VGqtjeWFUxOCXkv

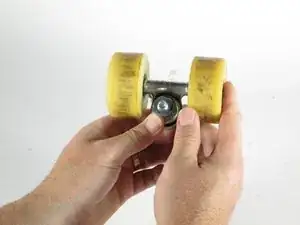

    • Flip the truck over and remove the nut from the truck assembly bolt.

  4. iO53w6flkThSWo3Z
    iO53w6flkThSWo3Z
    bQIL6HilcDjIEQge

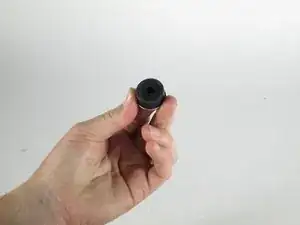

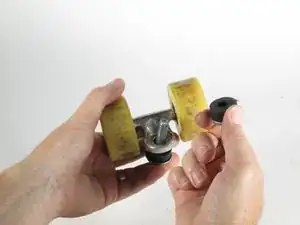

    • Remove both sets of cushions and retaining washers from the bolt.

  5. wvgI3EUiXTIRDKhl
    wvgI3EUiXTIRDKhl
    SvPAtsVX1OmTwZZI
    LhR2COw2RXMbhEbl

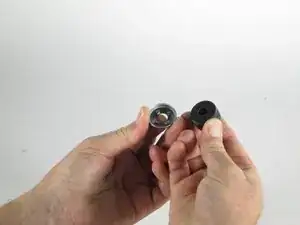

    • Remove the retaining washer from each cushion.

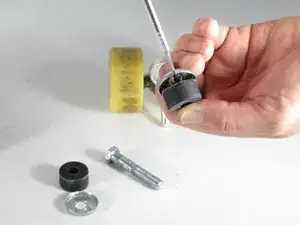

    • Use a spudger if the washer and cushion are difficult to separate.

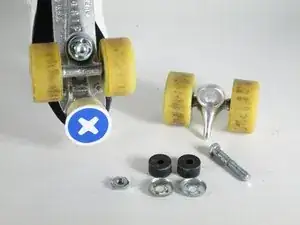

    • Replace worn cushions and washers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
