Rotary Multi Selector Wheel Removal

Geschrieben von: Andrew Lau
  • Kommentare: 0
Rotary Multi Selector Wheel Removal

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide is for the removal or installation of the rotary multi selector wheel.

  1. kBBihSkOehNGdAwe
    kBBihSkOehNGdAwe
    lJ2FDT5laV5WbXPj
    cJ6l2DjTFkHc4muY

    • Unscrew the two 3.5mm Phillips screws from the side with the AV outlet.

    • Unscrew the 3.5mm Phillips screw from the opposite side of the camera.

    • Unscrew the six 3.5mm Phillips screws from the bottom of the camera.

  2. K1UdrrDEEkDl6Jbn

    • Carefully remove the back casing from the camera.

    • Be mindful when removing the back casing as there is a ribbon that still connects the back casing to the motherboard.

  3. MGBDKqi2SVMEnUxX
    MGBDKqi2SVMEnUxX
    jjcfR2aUY62TVZaj

    • Place the plastic opening tool underneath the ribbon tab as shown. Gently lift the tab up.

    • Gently pull the ribbon from the logic board with tweezers.

    • With the ribbon disconnected, the back casing should now be detached from the rest of the camera.

  4. pQpOWdM4N3xkMiP5
    pQpOWdM4N3xkMiP5
    heqEbheckQNcYCSl
    MXKPHN4eoqmPcqAP

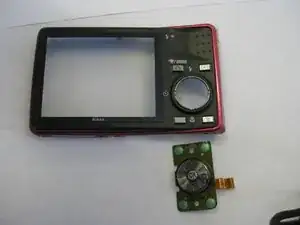

    • Lift up the metal cover and its button slowly using the tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
