Ryobi CSB125 Trigger Replacement

Geschrieben von: Curtis Melo
  • Kommentare: 0
Ryobi CSB125 Trigger Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to properly install a new trigger to your Ryobi CSB125 circular saw. If the trigger is no longer working or frequently becomes jammed, then you should highly consider replacing it. This troubleshooting page will help diagnose any potential problems occurring due to a faulty trigger switch. In the event that a new trigger is needed, this guide will show the steps to properly install a new one. The only tools you will need are a #2 Phillips screwdriver and a pair of wire strippers. This guide will cover how to access the internal wires that connect to the trigger switch.

  1. SCUBnGPrhoRhiVsG

    • Place the saw down on a flat surface with the motor facing up.

    • Make sure that the saw is unplugged from any power source.

  2. h1euxGDIS6OQHlLE
    h1euxGDIS6OQHlLE
    uXOZ23EDQUhU2PDo

    • Use the Phillips #2 screwdriver to remove the five M4x16mm screws.

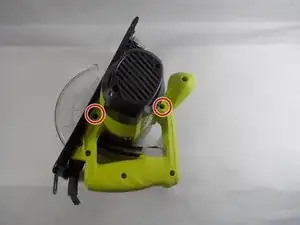

  3. bgbRiPWSnrtkuZCc

    • Use the Phillips #2 screwdriver to remove the two M45x35mm screws.

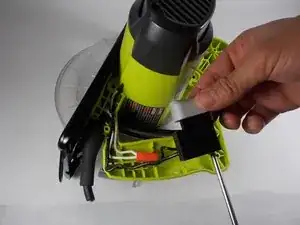

  4. mSSLHKgIe43O226P

    • Disconnect the two black wires by unscrewing them from the trigger switch using the Phillips #2 screwdriver.

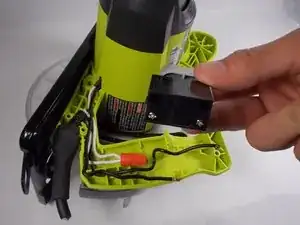

  5. PGkD6rFiKdFvi4og

    • Remove the trigger from the saw.

    • You may have to use the wire strippers to the copper on the new plug.

    • It is important that the wires are properly run in their tracks. Failure to do so could result in pinching a wire, which could damage the plug.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Curtis Melo

Mitglied seit: 31/10/19

1066 Reputation

0 Kommentare
