Einleitung

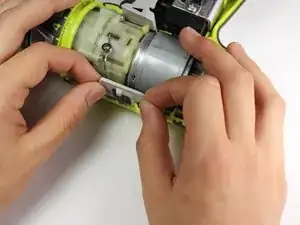

This guide demonstrates how to open the drill and remove the gear select switch. Removing the gear select switch does not require disassembling any of the internal electronics of the drill, but it is recommended to remove the battery to reduce shock hazard.
Werkzeuge
-
-
Detach the battery unit from the drill body by pressing the battery release buttons on both sides of the unit and pulling outwards.
-
-
-
Use a Torx T10 screw driver to unscrew all ten 13.5 mm screws from the drill casing to gain access to the interior.
-
-
-
Gently lift the casing from the drill body.
-
Take the casing completely off the drill body to gain access to the interior of the drill.
-
-
-
Rotate the Drill 180 degrees so that the top is facing you.
-

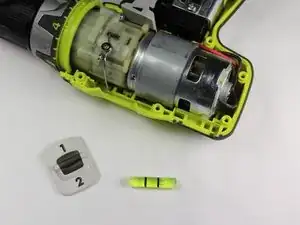

Lift the level gauge out from the top corner of the drill.
-
To reassemble your device, follow these instructions in reverse order.
