Ryobi P235 Bit-Holder Replacement

Geschrieben von: Paul Sousa
  • Kommentare: 0
Ryobi P235 Bit-Holder Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

The bit holder makes it easier to keep the bits you need close to your drill. This guide shows how to replace a missing or broken bit holder on your Ryobi P235.

  1. 5SLxTbksiTQW6LnR
    5SLxTbksiTQW6LnR
    OtRQ5FKLNPVREGaJ

    • Push in both push tabs on the battery at the same time.

    • They are located below the green housing and are in the middle on both sides of the battery.

  2. XCyPZM6jqZheLVvU
    XCyPZM6jqZheLVvU
    cUkgQvhohIRjxSdE

    • Pull the battery away from the drill housing while holding in both tabs.

  3. V1OYsQENpyBYJ1mZ
    V1OYsQENpyBYJ1mZ
    pR5OLo6hn3MtbViV

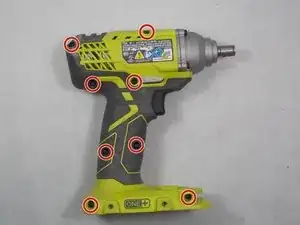

    • Use a Phillips #2 screwdriver to remove the eight 16 mm screws that secure the housing.

  4. iBZ2iyFmrDLiN6hE
    iBZ2iyFmrDLiN6hE
    FKfxIvDUdtbRF1mh

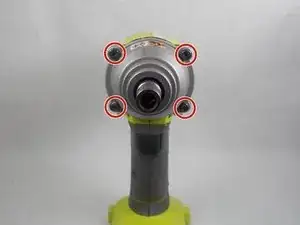

    • Use a T20 Torx screwdriver to remove the four 25.4 mm screws that secure the front of the housing.

  5. syY4rnOeOlZio2Vu
    syY4rnOeOlZio2Vu
    5aXmHxGtYFNTBfyu

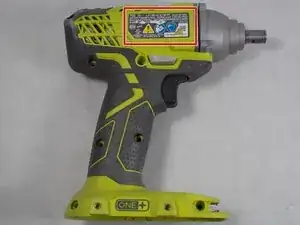

    • Open the housing with the data label facing up.

  6. UPLLdVW1MnZsXV3E
    UPLLdVW1MnZsXV3E
    y5DGYUmUFkDvnblk

    • Remove the old bit holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
