Ryobi P271 Reverse Switch Replacement

Geschrieben von: nathan krehbiel
  • Kommentare: 0
Ryobi P271 Reverse Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will help the user disassemble the drill, replace the broken or worn out reverse switch, and reassemble the drill.

  1. rlYjuTh5psKBvlJ2
    rlYjuTh5psKBvlJ2
    MTTPvXYCahaLapqI
    ZFLJpogCYLXPWQeh

    • Detach the battery unit from the drill body by pressing the battery release buttons on both sides of the unit and pulling outwards.

  2. jBVGXPX61IDVJMKA

    • Remove all ten Torx screws from the drill's case.

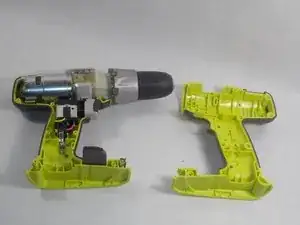

  3. ZcYZPHrE4IQc3I2C

    • Gently pull the casing apart.

    • Separating the casing too quickly could cause internals to become loose, and not easily seat together upon reassembly.

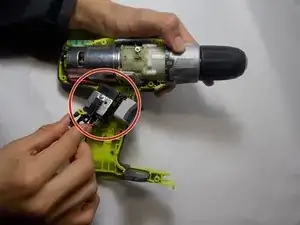

  4. Aic4mRfeEiyYyY33

    • Remove the trigger so that it can fully expose the reverse switch.

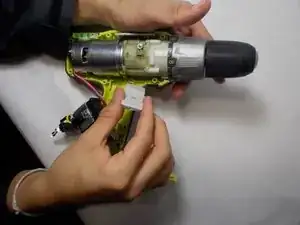

  5. jZK5wFSK2u5hOrTu

    • Firmly grab the reverse switch and pull on it until it comes out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
