Ryobi P516 Top Case Replacement

Geschrieben von: Cameron Davis
  • Kommentare: 1
Ryobi P516 Top Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

The Ryobi ONE+ P516 reciprocating saw is a lightweight, cordless saw, designed with compact features that complete the task for any DIY projects around your home. In this replacement guide, you will learn how to disassemble the main case for the reciprocating saw. To avoid hazards, keep the tools away from mouths and always wear safety goggles while sawing.

  1. hqCUsiCWHlLOPBOQ
    hqCUsiCWHlLOPBOQ
    J5VHnQoCQItmPipN

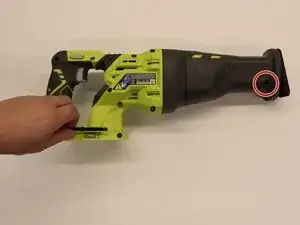

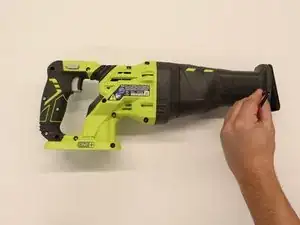

    • Using the 5mm hex key included at the base of the saw, loosen the set screw at the front of the saw.

    • The front guard will now slide out from the front of the saw.

  2. Or1v3JFA2GkCjrXZ
    Or1v3JFA2GkCjrXZ
    VOX14MKW3eHJhopH
    3kEoSKq3hTytTNg1

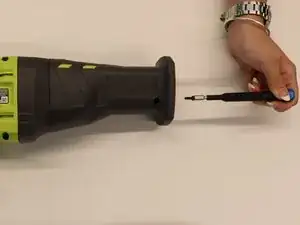

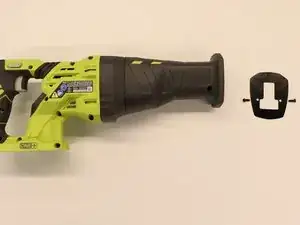

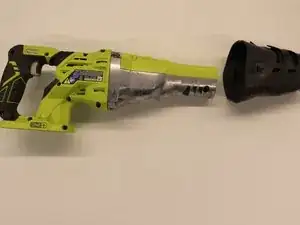

    • Remove the two 10mm T20 Torx screws from the front of the saw.

    • Pull out the front plate.

  3. DCUuRmSHYPxK1DaG
    DCUuRmSHYPxK1DaG
    W5Na4qOhFsvVfpaN
    PD3dONwjFKqT1FMI

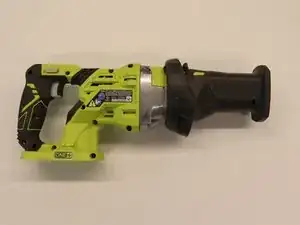

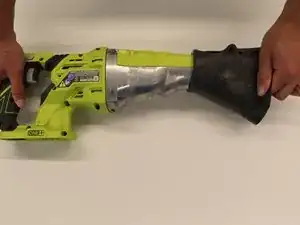

    • Start at the middle of the device and begin to pry up the rubber grip.

    • Pull the rubber portion inside out towards the front of the saw.

    Careful not to get the grip stuck on the blade release latch at the end of the saw.

    Cameron Davis -

  4. XdZDMco3cUgDhhRw

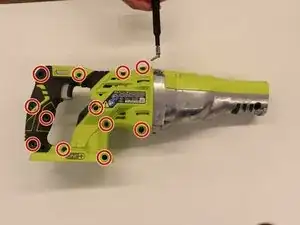

    • Remove all twelve 14mm T20 Torx screws from the main case of the device.

  5. l1cBiusjQeHSVcep
    l1cBiusjQeHSVcep
    glApVYZJhEJPKY3f
    FhoWNkF1tX6GOPSY

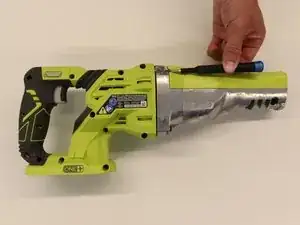

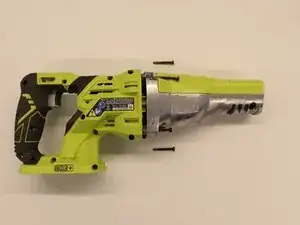

    • Remove the four 35mm Phillips #2 screws.

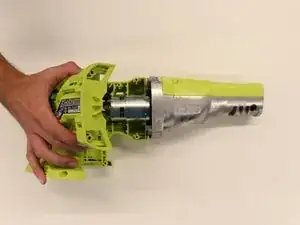

    • Pry the two case halves apart starting at the middle of the saw.

    • Watch out for any loose parts from inside the saw that may fall out during this step.

  6. 344WEGEQTwwfg46w

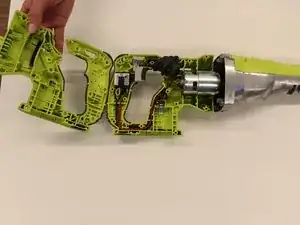

    • Continue splitting the case until the top piece of the case is free and set it aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
