Ryobi RJ1861V Assembly Bar Bearing Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

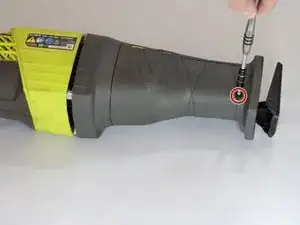

  1. LfRM62CMsLIF1nKd

    • Use a Torx T5 screwdriver to remove the single 8 mm screw securing the shoe.

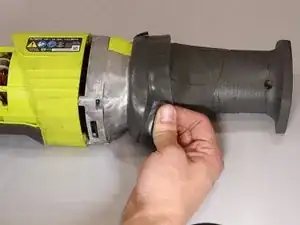

  2. SXn4QdKkiJMOKW2K
    SXn4QdKkiJMOKW2K

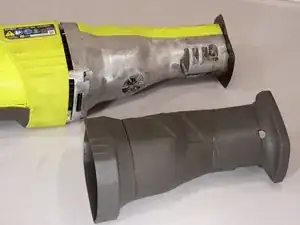

    AQFdX2f1YrpKQEZl

    • Remove the rubber sleeve.

    • You may have to use some force as it has a tight fit.

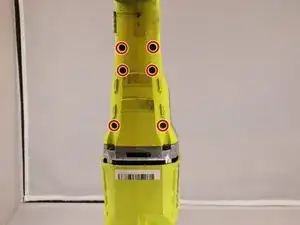

  3. wudpn1SWV2ZQDoV5

    • Use a Torx T5 screwdriver to remove the six screws on the underside of the device.

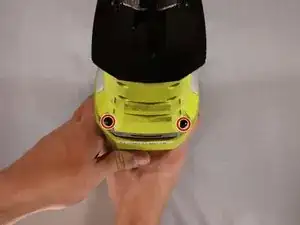

  4. VqrvDlSUhOoSFfQL

    • Use a Torx T5 screwdriver to remove the four screws on the top.

    • There are two screws on each side of the device.

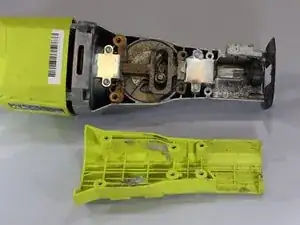

  5. qmeuqKYmCq2yI5Ff

    • Remove the backside panel.

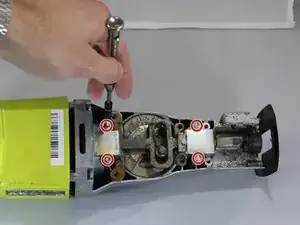

  6. BEbOjI3g1NoHFqRK

    • Unscrew the four T5 Torx screws that are holding the assembly bar in place.

  7. qZA3D3WJBtyyggAE

    • Lift the assembly bar up and out of the chassis.

  8. ROgaKHrqbNDc2plG

    • Begin with the top of the device facing up.

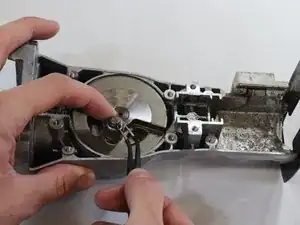

  9. wZZpkZepbY41F3fD

    • Insert needle nose pliers to remove the retaining pin at the top of the bearing.

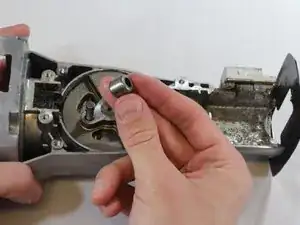

  10. BETDyKqqCWjEmXtw

    • Once the retaining pin has been removed, pull off the damaged bearing and insert a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
