Ryobi RJ1861V Motor Housing Replacement

Geschrieben von: Nicholas Bernissant Boyd
  • Kommentare: 0
Ryobi RJ1861V Motor Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 8 Minuten

Einleitung

  1. dJjVWPbWijk6RN2F

    • Use a Torx T20 screwdriver to remove the nine 16.5 mm screws around the trigger assembly.

  2. Pcj1A65qgZOrg5ZK
    Pcj1A65qgZOrg5ZK
    2X3vZhOpiJF1lgBb

    • Use a Torx T20 screwdriver to remove the two 16.5 mm screws near the trigger.

  3. pk1bQphNYlvxZCcM

    • Use a Torx T20 bit or screwdriver to remove the six 19 mm screws securing the gear case cover.

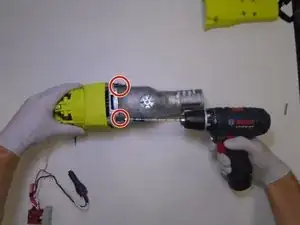

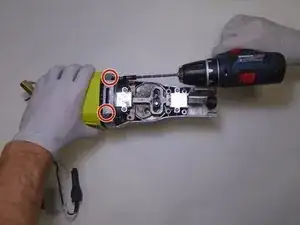

  4. AvlEmtK6tLUCReLE
    AvlEmtK6tLUCReLE
    tZjOlw16eO2ZMsrb

    • Use a Phillips #2 bit or screwdriver to remove the four 37 mm screws from the top and the bottom of the gear case.

    • Once these 4 screws are removed, you have access to the motor assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
