Einleitung

This replacement guild will should how to replace the motor in the Ryobi RJ1861V.

  1. LfRM62CMsLIF1nKd
    • Use a Torx T5 screwdriver to remove the single 8 mm screw securing the shoe.

  2. SXn4QdKkiJMOKW2K
    SXn4QdKkiJMOKW2K
    AQFdX2f1YrpKQEZl
    • Remove the rubber sleeve.

    • You may have to use some force as it has a tight fit.

  3. wudpn1SWV2ZQDoV5
    • Use a Torx T5 screwdriver to remove the six screws on the underside of the device.

  4. VqrvDlSUhOoSFfQL
    • Use a Torx T5 screwdriver to remove the four screws on the top.

    • There are two screws on each side of the device.

  5. qmeuqKYmCq2yI5Ff
    • Remove the backside panel.

  6. BEbOjI3g1NoHFqRK
    • Unscrew the four T5 Torx screws that are holding the assembly bar in place.

  7. qZA3D3WJBtyyggAE
    • Lift the assembly bar up and out of the chassis.

  8. ROgaKHrqbNDc2plG
    • Begin with the top of the device facing up.

  9. wZZpkZepbY41F3fD
    • Insert needle nose pliers to remove the retaining pin at the top of the bearing.

  10. BETDyKqqCWjEmXtw
    • Once the retaining pin has been removed, pull off the damaged bearing and insert a new one.

  11. LxNgIAV2TLFQAL2E
    LxNgIAV2TLFQAL2E
    n6A5JKNqisaPVhjT

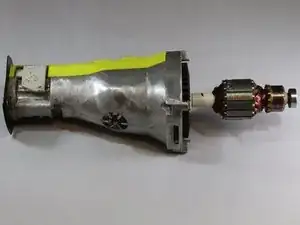

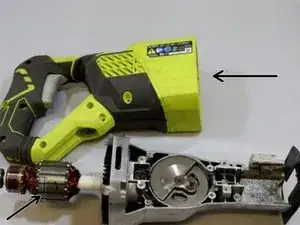

    • The motor is divided into two section which are the back and front.

    • The arrows indicate where the two motor locations .

  12. WookOjhdHnvyCFmF
    WookOjhdHnvyCFmF
    LlTweF6BTstiNg5f
    goENqYUOOEKKUrFn

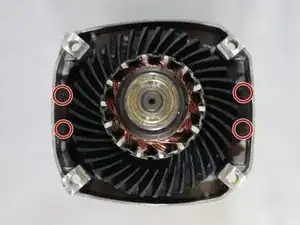

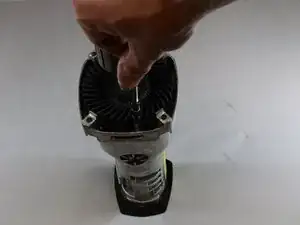

    • Use a Torx T5 screwdriver to remove the four screws on the top of the motor.

  13. oIMfqDBYlEBtxYEB

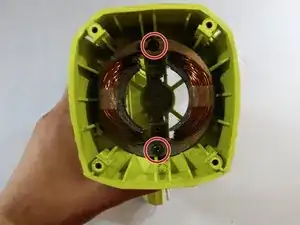

    • Use a Torx T5 screwdriver to remove the two screws inside the motor housing.

  14. DiPPEb1DClWZurHx
    DiPPEb1DClWZurHx
    YMfdJIyUisWkhTp6

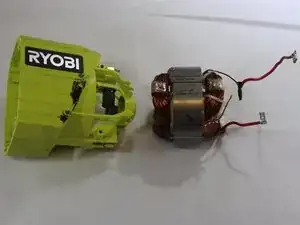

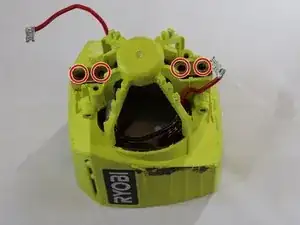

    • Remove the four screws on the back of the motor with a Torx T5 screwdriver.

    • Pull the motor directly out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
