Einleitung

  1. LfRM62CMsLIF1nKd
    • Use a Torx T5 screwdriver to remove the single 8 mm screw securing the shoe.

  2. SXn4QdKkiJMOKW2K
    SXn4QdKkiJMOKW2K
    AQFdX2f1YrpKQEZl
    • Remove the rubber sleeve.

    • You may have to use some force as it has a tight fit.

  3. wudpn1SWV2ZQDoV5
    • Use a Torx T5 screwdriver to remove the six screws on the underside of the device.

  4. VqrvDlSUhOoSFfQL
    • Use a Torx T5 screwdriver to remove the four screws on the top.

    • There are two screws on each side of the device.

  5. qmeuqKYmCq2yI5Ff
    • Remove the backside panel.

  6. BEbOjI3g1NoHFqRK
    • Unscrew the four T5 Torx screws that are holding the assembly bar in place.

  7. qZA3D3WJBtyyggAE
    • Lift the assembly bar up and out of the chassis.

  8. ROgaKHrqbNDc2plG
    • Begin with the top of the device facing up.

  9. wZZpkZepbY41F3fD
    • Insert needle nose pliers to remove the retaining pin at the top of the bearing.

  10. BETDyKqqCWjEmXtw
    • Once the retaining pin has been removed, pull off the damaged bearing and insert a new one.

  11. qVUgIJCj1wqHSYiU
    • After you remove the bearing, stand the device with the gear assembly facing up.

  12. kXB2D6GrminIQ4RF

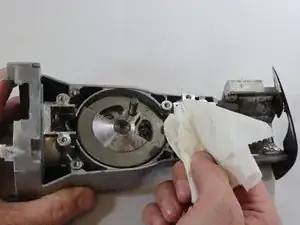

    • The gear assembly will be covered in industrial lubricant, so wipe away an excess with a rag to reveal three screws.

  13. Oyo2QmurPCVQhvZJ

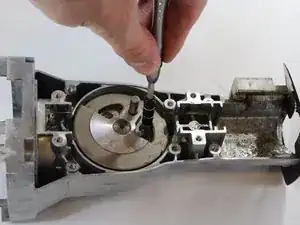

    • Remove three screws with a Torx bit and screw driver.

  14. U2PC2yvJBBpdVrcG
    • Rotate the device 180 degrees and apply pressure to the gear assembly through the small hole, extra force may be needed in this step to break it loose.

  15. MySGOBOiXo3MNC5n

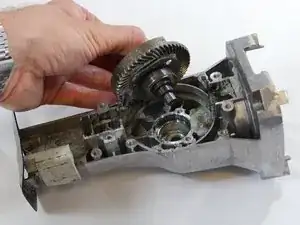

    • Once the gear assembly has broken free rotate the device again and lift it out of the gear housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
