Ryobi RS290G Bearing Cap Assembly Replacement

Geschrieben von: Daniel
  • Kommentare: 0
Ryobi RS290G Bearing Cap Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

If your Ryobi RS290G bearing assembly is loose or causing traction pad issues, this guide will show you how to successfully replace the bearing assembly.

  1. EKChYcEYAKluhGkO
    EKChYcEYAKluhGkO
    XQhNifah1bnDMESd

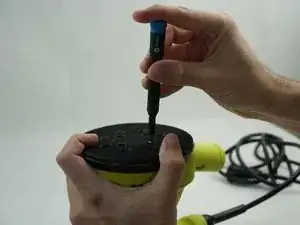

    • Using a TR20 Torx security screwdriver, remove the four 6mm screws.

    • Make sure to hold the backing pad firmly to prevent spinning.

  2. QSMalSeXPRsPRvVO

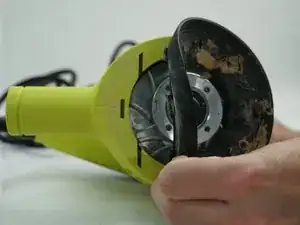

    • After removing the backing pad, carefully pull on the rubber brake to remove it from the housing assembly.

  3. QC6Why4JemOGiAmj

    • Using a TR 20 Torx security screwdriver, remove the single 3mm screw in the center of the bearing cap assembly.

    • Make sure to use pliers or another tool to prevent the fan from spinning, and use a torque wrench or torque screwdriver as the screw is secured with Loctite (a compound to prevent it from loosening).

  4. MpCcGBlFiwidBFfl

    • Remove the bearing cap.

    • You may keep the spring washer and washer for reuse if they are not worn/damaged.

Abschluss

To reassemble your device, follow these instructions in reverse order. Make sure to tighten down properly to avoid loose or traction pad issues.
