Ryobi RS290G Brush Assembly Replacement

Geschrieben von: Daniel
  • Kommentare: 0
Ryobi RS290G Brush Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 30 Minuten

Einleitung

If your Ryobi RS290G Brush Assemblies are no longer working, this guide will show you how to successfully replace them.

  1. mYxYpvHZyQTukkvy

    • Remove two 20mm and one 16mm Phillips #2 screws from the housing assembly and exhaust port.

  2. ysUDNVrlFBQNsUtC

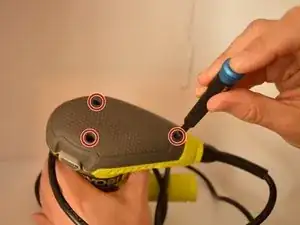

    • Remove the three 16mm Phillips #2 screws from the top cap/upper grip.

  3. rZNxxLbxNbLhr5k2

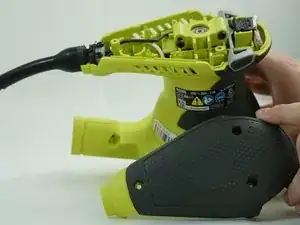

    • Remove the top cap.

  4. 56s4WtVKp2DF3EIw

    • Remove the switch trigger.

  5. sulvimt6ZhTGXR3E
    sulvimt6ZhTGXR3E
    1QXRAmEDCfWSWnaw

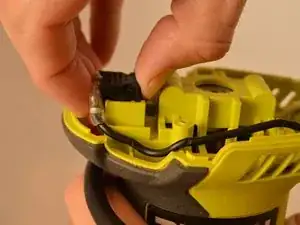

    • Slide the power switch out of the housing assembly by carefully gripping the power switch and slide upward from the base.

  6. A3jEvxSXyvNtVHoU

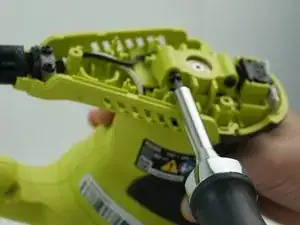

    • Remove the two 16mm Phillips #2 screws from the inner housing assembly.

  7. aDCrCpV3eRTLQ1jD

    • Remove the two 14mm Phillips #2 screws from the cord clamp.

  8. CeRDOMLLLuRgdYFU

    • Carefully slide the housing assembly apart, avoiding damage or pulling on wires.

  9. kL3AALgRmkgP42bR
    kL3AALgRmkgP42bR
    RFdYKa5KnKawKsMV

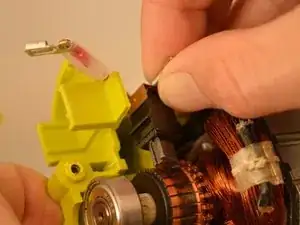

    • Slide out both brush assemblies from the inner housing assembly.

  10. Vbv2EVWhbQxMVbGU

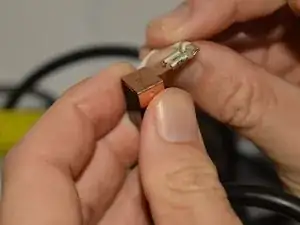

    • Slide off the disconnect terminal for the brush assembly (white lead).

  11. Ou4P1JFuen3KfUcg

    • Slide off the disconnect terminal for the brush assembly (black lead).

Abschluss

To reassemble your device, follow these instructions in reverse order.
