Ryobi RS290G Motor Replacement

Geschrieben von: Daniel

Kommentare: 0

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 30 Minuten

Einleitung

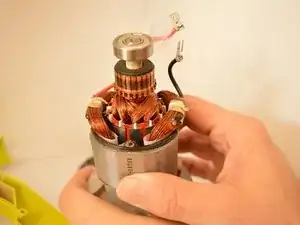

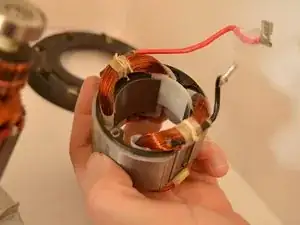

Use this guide to help replace the Ryobi RS290G Sander motor. The Ryobi RS290G uses a 2.6 AMP motor and 12,500 OPM (orbits per minute).

If you ordered the correct part, it should have the disconnect terminals already installed/crimped on.

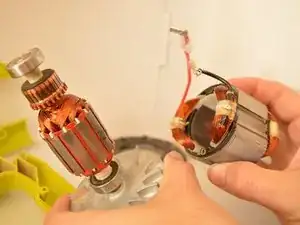

Through out its use the motor may experience some damage, be faulty, and can eventually become unusable all together. With this guide, it can teach you how to salvage your Ryobi RS290G Sander and completely replace its old motor.

This is a pretty simple replacement and does not require much specialty skills. Have fun with it and enjoy your Ryobi RS290G sander.

Werkzeuge

Ersatzteile

Part Number: 039143005042

Schritt 1

Remove two 20mm and one 16mm Phillips #2 screws from the housing assembly and exhaust port.

Schritt 2

Remove the three 16mm Phillips #2 screws from the top cap/upper grip.

Schritt 3

Remove the top cap.

Schritt 4

Remove the switch trigger.

Schritt 5

Remove the two 16mm Phillips #2 screws from the inner housing assembly.

Schritt 6

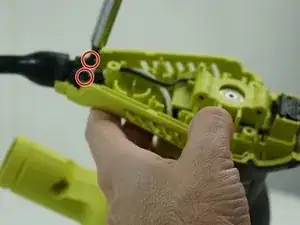

Remove the two 14mm Phillips #2 screws from the cord clamp.

Schritt 7

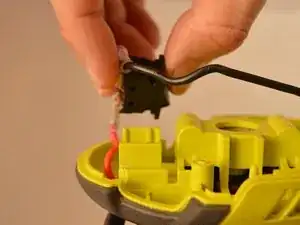

Slide the power switch out of the housing assembly.

Schritt 8

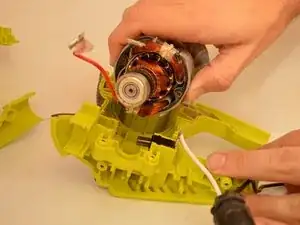

Carefully slide the housing assembly apart, avoiding damage or pulling on wires.

Schritt 9

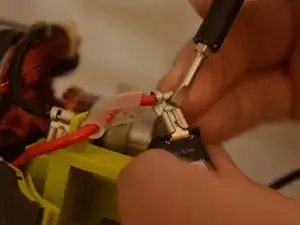

Slide off the disconnect terminal for the switch (red lead) from the power switch using the flat end of a spudger.

Schritt 10

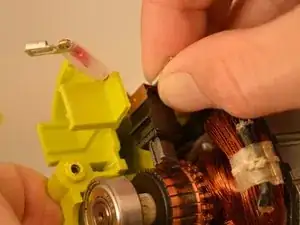

Slide out the brush assembly with the black lead from the inner housing assembly.

Schritt 11

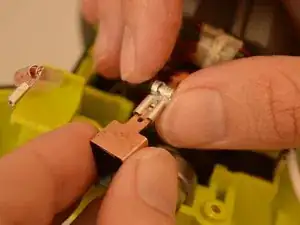

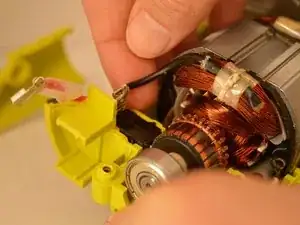

Slide off the disconnect terminal for the brush assembly (black lead) from the brush assembly.
You may need an ESD-safe flat edge tool, such as a spudger, to help slide off the disconnect terminal. Be careful not to damage the pieces or yourself.
