Ryobi RS290G Power Cord Replacement

Geschrieben von: Daniel
  • Kommentare: 4
Ryobi RS290G Power Cord Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

10 - 30 Minuten

Einleitung

If your Ryobi RS290G power cord is damaged or possibly unsafe due to exposed wires this guide will show you how to successfully replace the power cord.

  1. mYxYpvHZyQTukkvy

    • Remove two 20mm and one 16mm Phillips #2 screws from the housing assembly and exhaust port.

  2. ysUDNVrlFBQNsUtC

    • Remove the three 16mm Phillips #2 screws from the top cap/upper grip.

  3. rZNxxLbxNbLhr5k2

    • Remove the top cap.

  4. 56s4WtVKp2DF3EIw

    • Remove the switch trigger.

  5. 32Yaena6DQLGQLNd

    • Remove the two 16mm Phillips #2 screws from the inner housing assembly.

  6. GSF6ZbaBJlKHe2QD

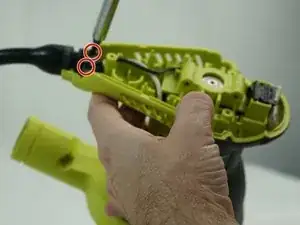

    • Remove the two 14mm Phillips #2 screws from the cord clamp.

    In this image, the hand is very clear but the tool itself is blurry.

    Sandy Branham -

  7. aECBoGliuQ5UNfic
    aECBoGliuQ5UNfic
    P11ocIQqpB6TVHQS

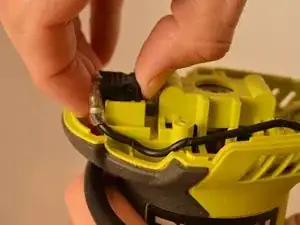

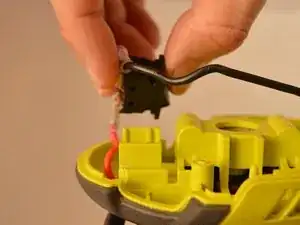

    • Slide the power switch out of the housing assembly, carefully gripping the switch and pulling it upward.

  8. sZeAIaBbDPJAe5cY
    sZeAIaBbDPJAe5cY
    2ZRbRptlBfSwThwu

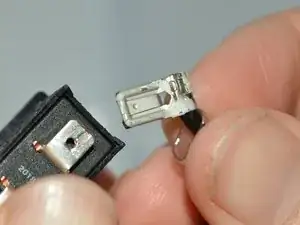

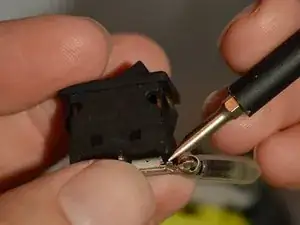

    • Remove the black lead from the power switch using a spudger.

    Same as in previous guide — retake images using the proper tool and rewrite the associated step accordingly (without “it is recommended”).

    Sandy Branham -

  9. e5LWwVU6TBxlmBUJ

    • Carefully slide the housing assembly apart, avoiding damage or pulling on wires.

    Perhaps a note here that indicates that the two components of the part will remain connected after they are gently separated?

    Sandy Branham -

  10. 2IZVKofsPeLchIQQ
    2IZVKofsPeLchIQQ
    QHnTWtlCJFCK2WtM

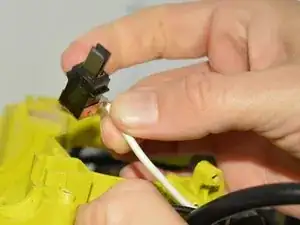

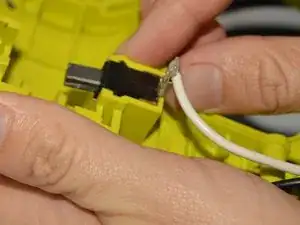

    • Slide out the brush assembly with the white lead from the inner housing assembly.

    Again, how should this be slid?

    Sandy Branham -

  11. mudh6KxbOTLhWWyp

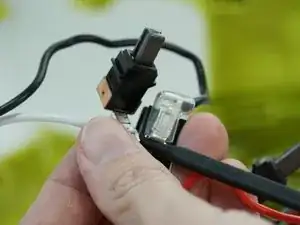

    • Remove the white lead from the brush assembly.

  12. 6YObKcmZ216D1XZE
    6YObKcmZ216D1XZE
    KVyP2PgRQfgMbWVY

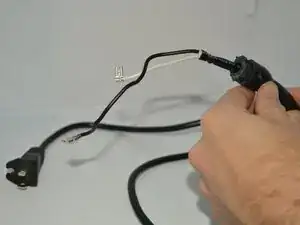

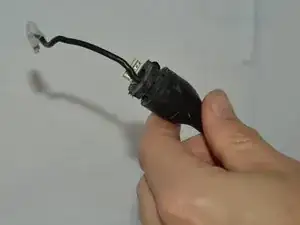

    • Slide the bend relief off of the old power cord to reuse on the new power cord if there is no damage.

Abschluss

To reassemble your device, follow these instructions in reverse order. Make sure to perform an operational check after reassembling.
