Ryobi RS290G Power Switch Replacement

Geschrieben von: Cameron Scott Williams
  • Kommentare: 2
Ryobi RS290G Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

If your Ryobi RS290G is having power trouble this guide will show you how to successfully replace the power switch.

  1. mYxYpvHZyQTukkvy

    • Remove two 20mm and one 16mm Phillips #2 screws from the housing assembly and exhaust port.

  2. ysUDNVrlFBQNsUtC

    • Remove the three 16mm Phillips #2 screws from the top cap/upper grip.

  3. rZNxxLbxNbLhr5k2

    • Remove the top cap.

  4. 56s4WtVKp2DF3EIw

    • Remove the switch trigger.

  5. PE1k4onODreigWf2
    PE1k4onODreigWf2
    KnWJYlmSq5jXfMWW

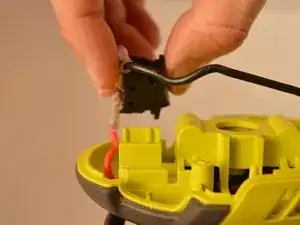

    • Slide the power switch out of the housing assembly by carefully gripping the power switch and sliding upward from the base.

  6. sWCKMGHOOZZVBRR3
    sWCKMGHOOZZVBRR3
    wwAZqg6CUkFpXEy2
    REwdB6LRPT326xvD

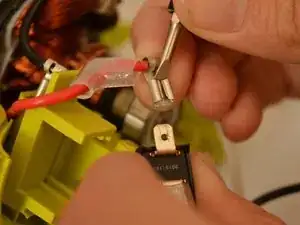

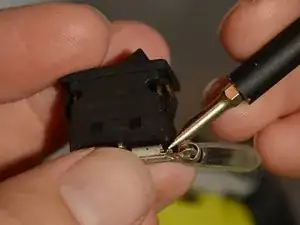

    • Slide the red and black leads from the power switch using a spudger.

    You’ll need to retake these pictures using the spudger or the plastic opening tool, rather than the screwdriver. Also, this seems like two steps — one in which the user removes the leads, and one in which the user uses the spudger to remove the disconnect terminal. Is this accurate?

    Sandy Branham -

    So now? Can you buy a new switch?

    Donna Binner -

Abschluss

To reassemble your device, follow these instructions in reverse order. After reassembling, perform an operational check before using.
