SAMSUNG ATIV Book 9 Plus NP930X5J-S01US Battery Replacement

Geschrieben von: Sean Kim
  • Kommentare: 0
SAMSUNG ATIV Book 9 Plus NP930X5J-S01US Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide may cover how to remove the battery from a Samsung ATIV Book 9 Plus laptop. Before removing and replacing the battery from the laptop, be sure to have a Phillips #00 Screwdriver along with a Phillips PH00 4 mm Bit. Once the battery has been removed, the Rechargeable Li-Polymer Battery is ready to be inserted. For further instructions, feel free to check out the guide.

  1. QVnR1O1R6saiFEVI
    QVnR1O1R6saiFEVI
    ekveW1JFBCcZHBS2

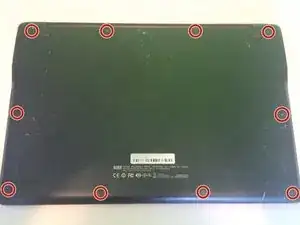

    • Remove the ten 4.3mm Phillips #00 screws from the bottom cover of the laptop.

  2. m3JVBVkK5qcPhr4a
    m3JVBVkK5qcPhr4a
    INY1bG3w4VYCALTw
    kiNJy4wwX4ZWp3aN

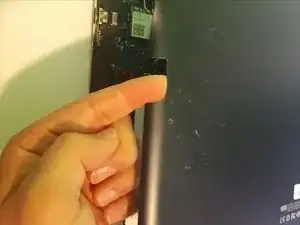

    • Press the button to release the bottom cover.

  3. RP5JUe2ABNp1PqnG
    RP5JUe2ABNp1PqnG
    KFKRroXEfd2OcRYj

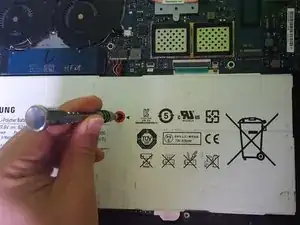

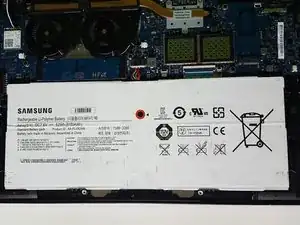

    • Remove the five 4.3mm Phillips #00 screws from the battery.

  4. D4CQrUiyBGJJxAVh
    D4CQrUiyBGJJxAVh
    qPkGOWw2QViBMSP3

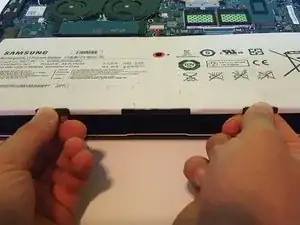

    • Lift the battery with both hands and remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
