SHARP EL-W53XG WriteView Battery Replacement

Geschrieben von: Faduma Hagi
  • Kommentare: 0
SHARP EL-W53XG WriteView Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide is on how to replace the battery in a SHARP EL-W53XG WriteView calculator. Although this calculator is solar-powered, the battery in a SHARP EL-W53XG WriteView calculator operates the total functionality of the calculator. Therefore, when the LR44 battery dies, the whole calculator will stop working. This can become troublesome for users. Following the steps of this guide thoroughly, users with this problem can effectively replace their battery in this calculator.

  1. IdPdyiY2FQPTSnPh
    IdPdyiY2FQPTSnPh
    iRhOg2ZWT1NyMhUV

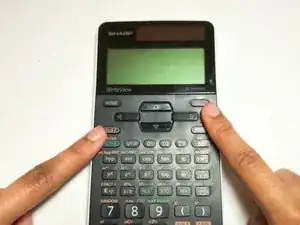

    • Turn off the calculator by pressing both the [2NDF ] and [ON] buttons at the same time.

  2. DuCNEYeeiidngBGr

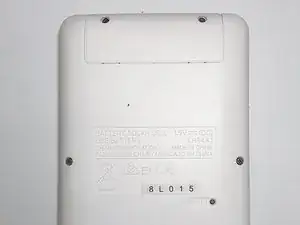

    • Flip the calculator so that the battery cover is facing you, and it will be easy to remove.

  3. dwQgCFo1h1x4cPo3
    dwQgCFo1h1x4cPo3
    RuktAEuNaA5BQ22k

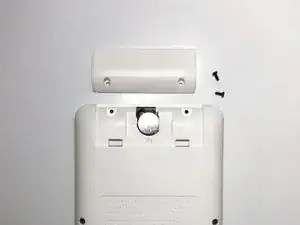

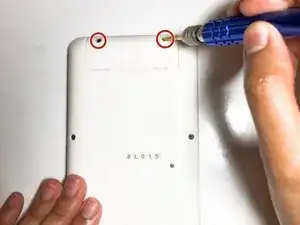

    • Remove the two screws securing the battery cover with the Tri-point #000 screwdriver.

    • Remove the battery cover.

    • Make sure not to remove the other screws on the calculator, just the two screws on the battery cover.

  4. KxPE2bUEdjbNFSyW
    KxPE2bUEdjbNFSyW
    vBymMmJCVLWoXEDn

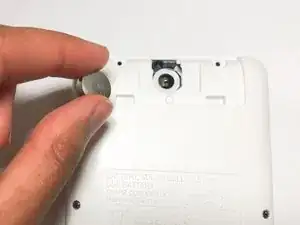

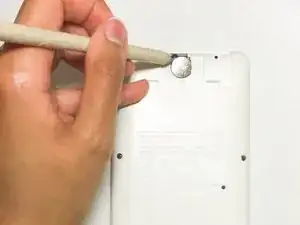

    • Remove the worn-out LR44 battery inside using a spudger.

  5. cxN1hrROB22psCPy

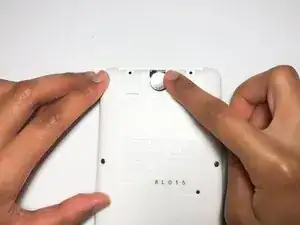

    • Gently insert the new LR44 battery in the empty battery slot.

  6. XyCnBxqGh5iEAsea

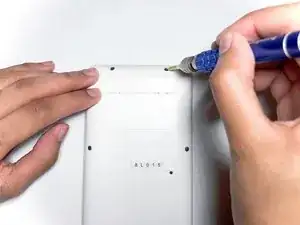

    • Place and screw the battery cover on using the Tri-point #000 screwdriver.

    • Tightly screw the battery cover to prevent losing screws.

Abschluss

To reassemble your device, follow these instructions in reverse order.
