SKYTEX SP1020 Rear Case Replacement

Geschrieben von: yuriy16899
  • Kommentare: 0
SKYTEX SP1020 Rear Case Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

By the end of the guide the back panel will be separated from your device.

  1. Y4Z6kHifZRQLEaeP
    Y4Z6kHifZRQLEaeP
    OwWLHKDtMyZAnsOR

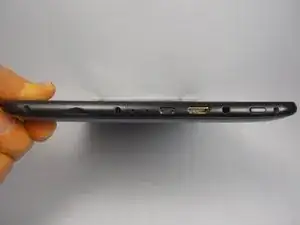

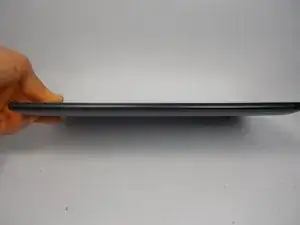

    • Prior to any repairs make sure that you are familiar with the device as well as the location of its buttons and ports.

    • Turn off device prior to continuing to further steps.

  2. lVfSRGxeXvwYwAiN
    lVfSRGxeXvwYwAiN
    HMPFr1oibguvXRLk
    tTbZYxwbdXColj5T

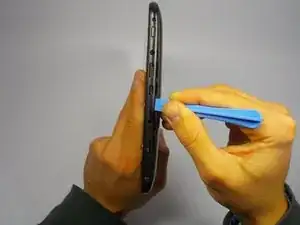

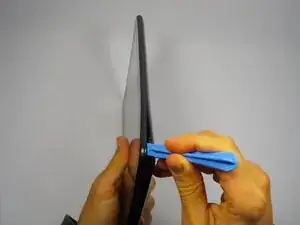

    • Set the tablet back panel facing down, with the SKYTEX logo facing you. You will find that this step will start from the right side of the device.

    • Insert the plastic opening tool between the bottom seam of the back panel and the micro SD port. The tool's edge should point toward the rear panel to prevent any scratching or damage.

    • Follow up with the plastic opening tool, releasing the clips as you go all the way around the device.

  3. hLROSQOVxvviPpmJ

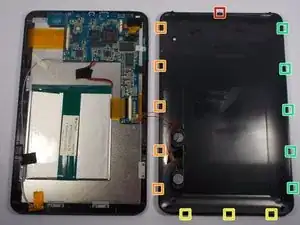

    • The clips will be released in the order specified as the spudger tool is moved along the seam around the device.

  4. qLfc3uPSObQdDEOT

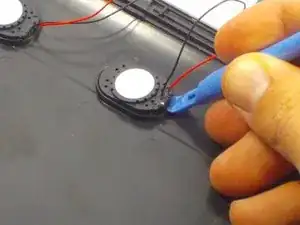

    • Use a plastic opening tool to pry the speakers out of the rear case.

    • The rear case will now be free from the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
