This guide illustrates the steps required to replace the fuse in a SOMNObalance and SOMNOcomfort ventilator. The page numbers included stem from the service repair guide (linked on the device page). Only use fuses mentioned in the Replacement parts list in the servicing repair guide (pg. 35, WM 13422).

  1. xtHBxvZghKHPYLjg
    • Remove the covering cap. (pg. 23)

  2. mJZhRPpwJ6dhtIZR
    • Place the unit upside down on a non-slip surface and remove the six screws. (pg. 23)

  3. pptQT6bXTVfMZKNe
    • Remove the lower part of the housing with a swiveling motion away to the side. Note the SOMNOcomfort series uses a shorter circuit board than the balance series ventilator. (pg. 23)

  4. K5EdQfOmExCvALDb
    K5EdQfOmExCvALDb
    GrZyokxNRZUZDUSb
    wKLPMkABYFOjJf6B
    • Remove the connector (X1) from the circuit board.

    • Pull the connecting cable (64) from its mount.

    • Now set aside the lower part of the housing. (pg. 23)

  5. IMDWeli4ILnRl2FH
    IMDWeli4ILnRl2FH
    fd4KyNPtJc2JeYyh
    • Next, how to close the compartment and reverse the process.

    • Hold the lower part of the housing to the upper part at an angle

    • Attach the connector (X1) to the main circuit board. When doing so the connector’s nub has to point towards the lock. (pg. 24)

  6. 4LCPiFqdSKcwywZT
    4LCPiFqdSKcwywZT
    KTntTgMcB5yhXMta
    • Properly align the main circuit board inside the unit.

    • Attach the connecting cable (64) to its mount (pg. 24)

  7. ojhBKQ5lXULSJoCo
    • Place the lower part of the housing on the upper part (47). Please make sure the main circuit board (44) is aligned properly, and that the connecting cable (64) is not being squeezed anywhere. (pg. 24)

  8. gWADtjEQKtrVw24g
    • Now reattach the upper part of the housing by tightening the six screws. (pg. 24)

  9. SegWQwaglSVmJ3OA
    • Insert the covering cap. (pg. 24)

  10. dbTy2v4R5IuYoAPu
    • Open the unit (refer to the guide "How to Open and Close Housing")

  11. LKLbLvUDSTbpPPuo
    LKLbLvUDSTbpPPuo
    kuj1KO4fVVkonI2q

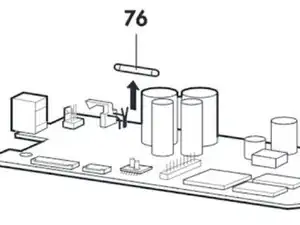

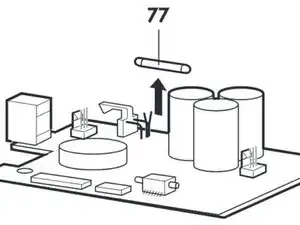

    • Remove the defective fuse(76 or 77) and replace with a new one. (pg. 27)

    • Ensure the correct amperage is used. Use fuses mentioned in the Replacement parts list only. Using other fuses may cause damage to the main circuit board.

    • 76 refers to the fuse in SOMNObalance. 77 refers to the fuse in SOMNOcomfort.

  12. W1PEm2WA1tgWXO44

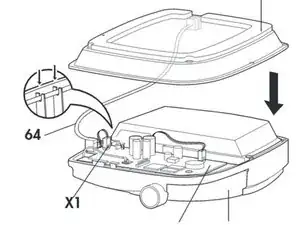

    • Close the Unit (refer to the guide "How to Open and Close Housing").

Abschluss

Check that everything is working properly after having successfully replaced the fuse.
