SONY ZS-BTG900 Radio Adapter Replacement

Geschrieben von: Alfredo Rodriguez
  • Kommentare: 2
SONY ZS-BTG900 Radio Adapter Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

3 - 6 Minuten

Einleitung

Before attempting this guide, be sure you check out the device troubleshooting page to see if you can get your radio working that way.

If not, we are going to go ahead and open the device as you will need to swap out your radio adapter for a working one.

  1. 2YdXvWrhLnuHTZDs
    2YdXvWrhLnuHTZDs
    1BKu5FIxHqOJ1VUK

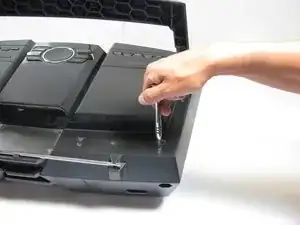

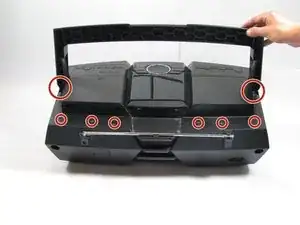

    • Lift up the handle to reveal the screws.

    • Use your Phillips #2 screwdriver to remove the eight 1/2 inch screws.

  2. OYVF11Stopn2bywJ
    OYVF11Stopn2bywJ
    wlRMsmsokxGPp63m
    EEdbbG4PrXKuGMTF

    • Flip your device over.

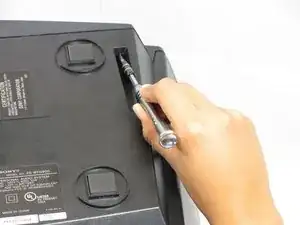

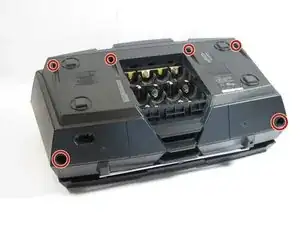

    • Use your Phillips #2 screwdriver to remove the six 3/4inch screws.

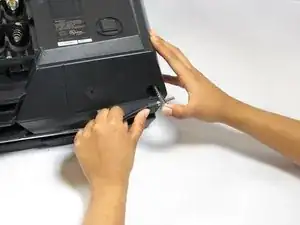

    • In removing the screws within the two holes on the back of the device, you may want to use your shaft extension to provide extra torque as they may be very tight.

  3. hLHpoLpRnu53btsY
    hLHpoLpRnu53btsY
    Z6ljgpIaE1uPl6G6

    • Flip your device back over to access the top of the device.

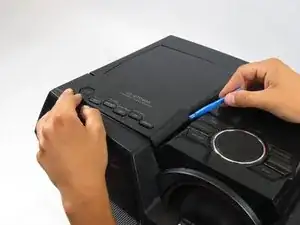

    • Use your plastic opening tool to pry up and remove the panel on the top, left hand side of the device.

    • This will reveal two additional screws.

  4. NQo1wYjtupTeABrL

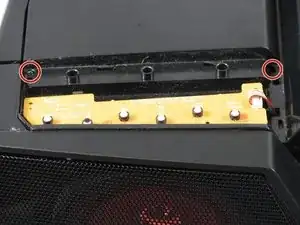

    • Use your Phillips #2 screwdriver to remove the two 1/2 inch screws underneath the now-removed panels.

    How do you remove the carrying handle

    Gerald Senchak -

    Seems the handle has to come off before the top….. how does the handle get removed? Thanks!

    Dan Mull -

  5. FgIkJSDGhrRCMoiF
    FgIkJSDGhrRCMoiF
    1JA2buRdgN5XHraU

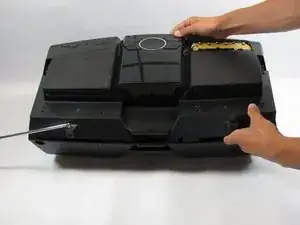

    • Lift off the top, beginning from the back of the device.

    • Take care when lifting the top portion as there are many wires connected to the inside of the device and you do not want to disconnect these just yet.

  6. Q1Sq3uC6trtQjlUP
    Q1Sq3uC6trtQjlUP
    i2tIjlEk3RSvGWKg

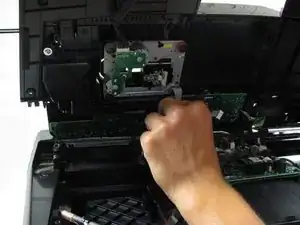

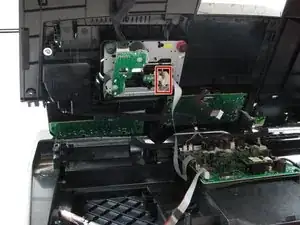

    • Disconnect the CD drive ribbon cable from the top of the device.

  7. TyZSWnfEL1EWJ5Av
    TyZSWnfEL1EWJ5Av
    Kt2WGwlodqUJGv3F

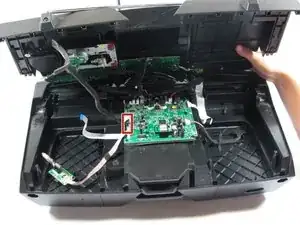

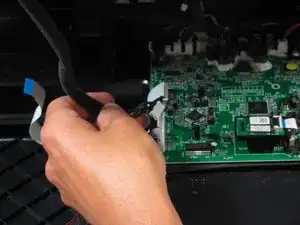

    • Disconnect the antenna cables.

  8. GSne6jipRubSerfT
    GSne6jipRubSerfT
    PZOnwcvSmaouXoer
    DrTAf443HC2WxPkh

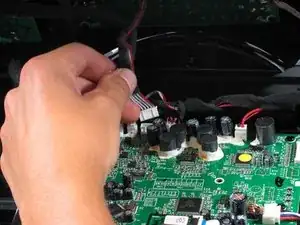

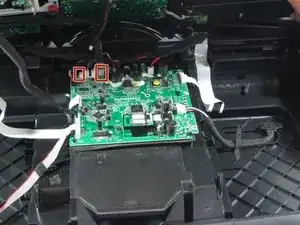

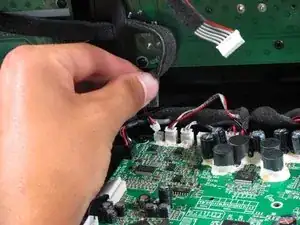

    • Disconnect the remaining cables from the motherboard.

  9. aaXAeDPQj66ZF5FT
    aaXAeDPQj66ZF5FT
    yAvH2PIRiVXqQHBf

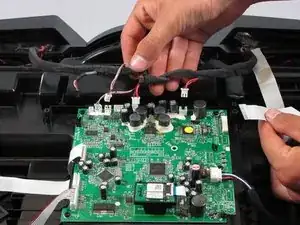

    • Once you have removed the top, we will begin removing the front of the device.

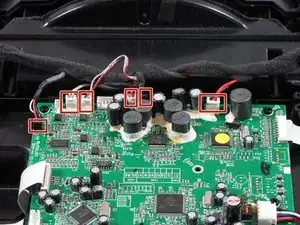

    • Begin by disconnecting the 6 cables that lead from the front of the device to the motherboard.

  10. IHkd5EZ3xKN34nBS

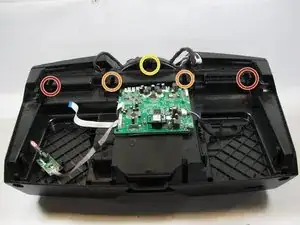

    • Use your Philips #2 screwdriver to remove the two 1 inch screws on the outermost part of the device.

    • Use your Philips #2 screwdriver to remove the two 3/4 inch screws on the outermost part of the device.

    • Use your Philips #2 screwdriver to remove the one 5/6 inch screw on the middle part of the device.

  11. HLoB5awUX543xpGD
    HLoB5awUX543xpGD
    ui3vwXv5py3Ed1Kd

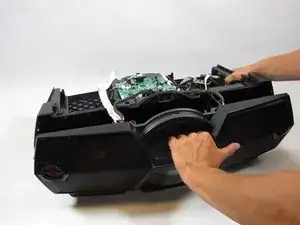

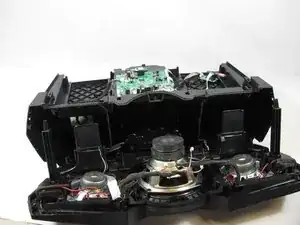

    • Firmly pull off the front of device.

    • There will be a small amount of black glue. You can simply ignore this, and continue to pull, or use a sharp edge to cut the glue once you've revealed it.

  12. 4PuO1YpWWinqD5dO

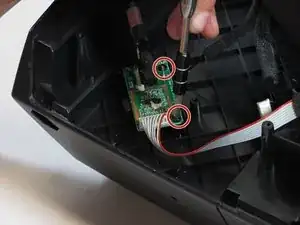

    • Use a Phillips #2 screwdriver to unscrew the two 1/2 inch screws

  13. 36NOut1sabBhyRVu

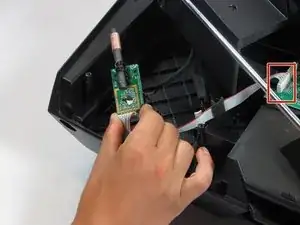

    • Lift and replace.

    • Disconnect white cable from motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
