SR 306-12951100 Acoustic Guitar Tuning Keys Replacement

Geschrieben von: Michael Biancardi
  • Kommentare: 2
SR 306-12951100 Acoustic Guitar Tuning Keys Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

Tuning keys are necessary to play a guitar. However, they can sometimes break, especially on old or used guitars. This makes playing the guitar significantly more difficult or, in some cases, impossible. If the tuning keys on your guitar are broken, this guide will help replace them. Specifically, this guide will help you repair and replace tuning keys on an SR 306-12951100 Acoustic Guitar. We will be replacing the old tuning keys with 3x3 plate tuning keys.

This guide assumes you have already removed the strings from the guitar. If you have not, follow Steps 1 and 2 from this guide for instructions.

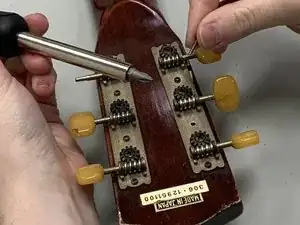

  1. 4VuxKNxKfWvHIR6I
    4VuxKNxKfWvHIR6I
    kYirdQieOBSeGGnp
    vBLaPfWpAYQsMJiR

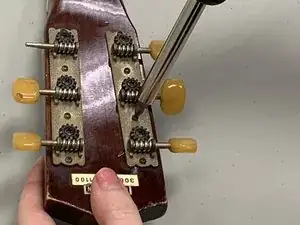

    • Remove the four outer screws.

    • Then remove the four inner screws.

    • The screws are located on the back of the guitar head.

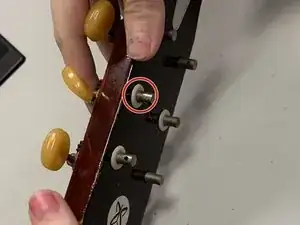

  2. jwuEgPfgqEWZnr4G
    jwuEgPfgqEWZnr4G
    mnBpqNojD2pEyI1a

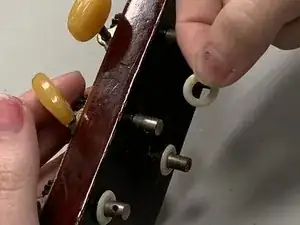

    • Slide all of the collars off of the old tuning keys.

    • The collars are found on the tuning key pegs on the front head of the guitar. One of the collars is indicated in the first picture.

    • Some of the collars may be difficult to remove. Apply gentle pressure until they pop off.

  3. PlImbubPtYKBb4ue
    PlImbubPtYKBb4ue
    piqFDjoJOmfMpktr
    weAVVFkIOL1jMAYS

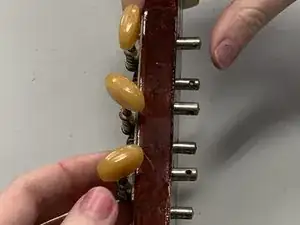

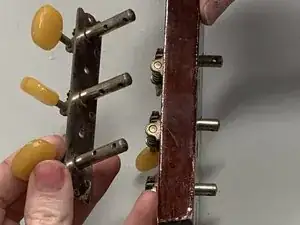

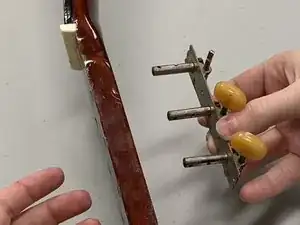

    • Remove the old tuning keys by sliding them out of the holes.

    • It helps to put the guitar on its side and hold the head of the guitar from the front and push the old tuning keys out the back.

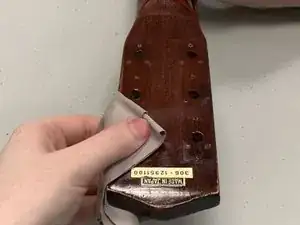

  4. P6SlYCKfpn1mxtV4
    P6SlYCKfpn1mxtV4
    fViaSYWHiWdxYeID

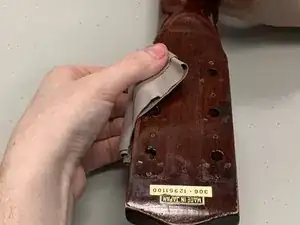

    • Clean the guitar head and tuning key holes using a microfiber cloth to ensure that the new tuning keys will fit properly.

    • This step may require more or less effort depending on how much epoxy was used to hold the old tuning keys in place.

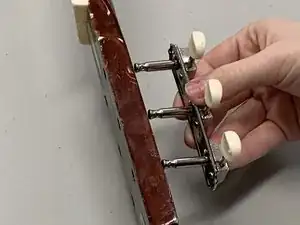

  5. CL5uLFVJsPrYXGOd
    CL5uLFVJsPrYXGOd
    3GODVMFjbNYxnq13
    3YKmOJgKZBkoxSs3

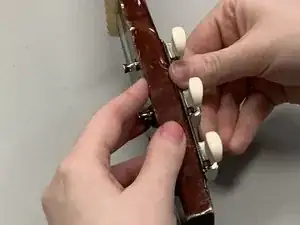

    • Insert one of the new tuning key racks into the appropriate tuning key holes.

    • Both of the new tuning key pieces are identical, so either plate can be used.

    • The plate should have an overall length of 102 mm. The center to center distance between posts should be 35 mm.

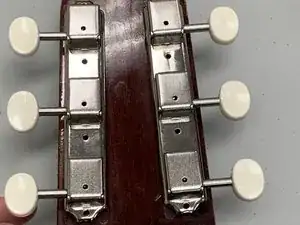

  6. MiGfIqY2x5InCj2g
    MiGfIqY2x5InCj2g
    Ikod12hfBkWadWHl
    4EWTGR1BZnLnQS3W

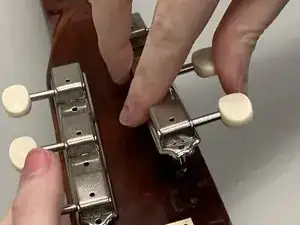

    • Insert the second tuning key rack into the appropriate tuning key holes.

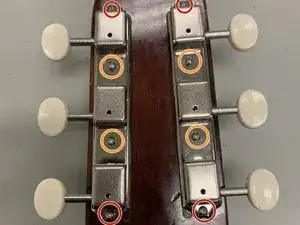

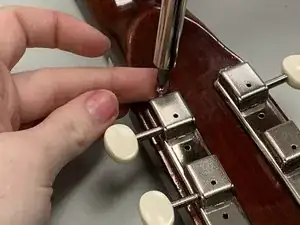

  7. W11SvQHCwfb523Kn
    W11SvQHCwfb523Kn
    UKZnf2HyeC2kZMju
    o35JFfota5RLfAnX

    • Begin installing the four outer screws.

    • Then install the four inner screws.

    • The dimensions of the screws that come with the kit are 31 mm x 35 mm x 27 mm.

    • Do not tighten the screws until all of them are in place. Once all eight screws are in, go back and tighten each one. This is done so that the new tuning keys can be properly aligned.

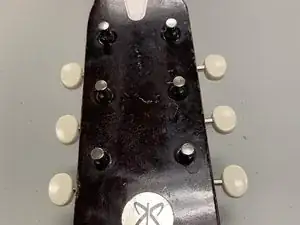

  8. LaPL35FKJLUEZsWy
    LaPL35FKJLUEZsWy
    XUZj2fWLfvJNMAp6

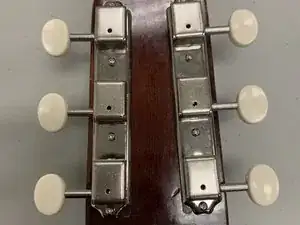

    • The tuning keys are now properly installed.

    • Install new guitar strings by following this video (start at 1 min 20 sec.) and this guide.
