Einleitung
This guides enumerates the steps of removing and replacing the front casing of the SPV Aqua 5800 Camera in order to protect the mechanisms within.
Werkzeuge
-
-

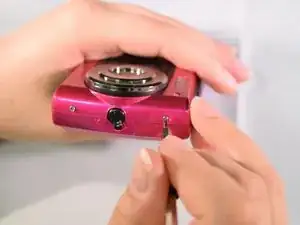

Locate the two 3.5 mm screws on the side of the device.
-
Apply pressure to the PH J000 philips head screwdriver and turn in a counter clockwise motion until the screw becomes loose enough to pull out.
-
-
-
Once you have properly removed the strap hook, locate the two 3 mm screws located on the opposite side of the strap hook.
-
Place the PH J000 phillips head screwdriver on the head of screw; apply pressure and turn in a counter clockwise motion until screws come loose.
-
-
-

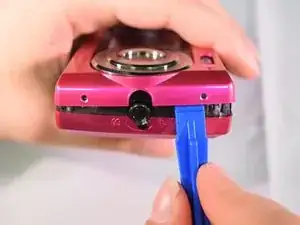

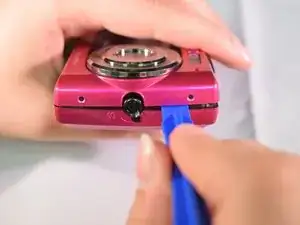

Place the plastic opening tool on the crack between the front and back casings.
-
Apply pressure by pulling down on the plastic opening tool to pry the case apart.
-
-
-

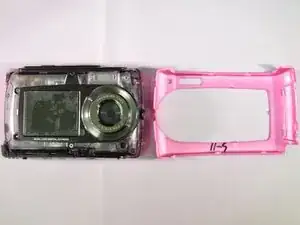

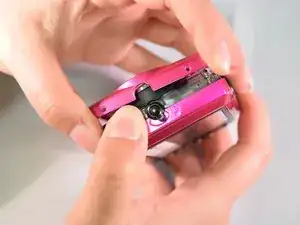

Wedge your fingers in the opening and slowly pull the front casing away from the bottom casing until it complete separates from the device.
-
To reassemble your device, follow these instructions in reverse order.
