Samsung ASV09PSBAN Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 Minuten

Einleitung

If your air conditioner is not changing temperature or you can not turn it on, there is a great chance that the problem lies in the circuit board. Over time, the circuit board can be damaged due to different reasons. Without the circuit board, the unit is almost unusable.

Use this guide to replace the circuit board in your Samsung ASV09PSBAN air conditioner or similar air conditioner if applicable

Before starting this guide, make sure to turn the power off in the room where the unit is connected. Turn off the circuit breaker that provides power for the unit. Without turning the power off, you may accidentally harm yourself or the unit.

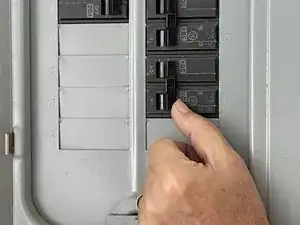

  1. vMEQrLGpD3Mo2tuk

    • Turn off the power from the circuit breaker.

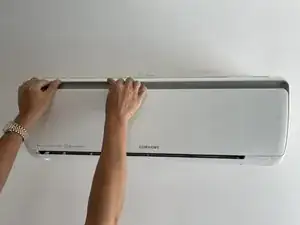

  2. QENjxvdQhCNy5Ui2
    QENjxvdQhCNy5Ui2
    SGBIaBDI6mAYDf2H
    GOKvwtC1C5IaFVZY

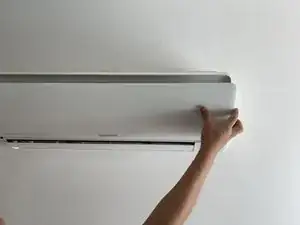

    • Carefully remove the front grille panel by placing your hands at the top of the air intake cover.

  3. upfOtrepUYjNPeWt

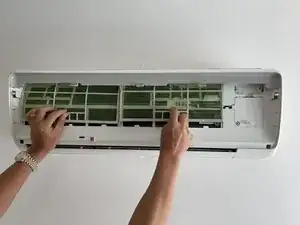

    • Use your hands to remove the air filters.

    • Clean the air intake screen with a vacuum if necessary.

  4. vu5yMiy6UuupLGOD
    vu5yMiy6UuupLGOD
    GxEwvusqJSq2orHL
    U5yyfr3Y41fTLQju

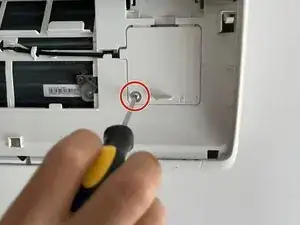

    • Remove the screw from the small panel on the right side.

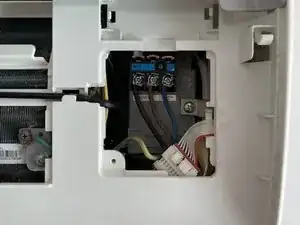

    • Remove the cover.

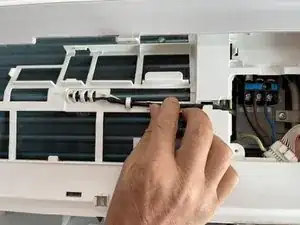

  5. VILjMIO6Rhnn1TUd
    VILjMIO6Rhnn1TUd

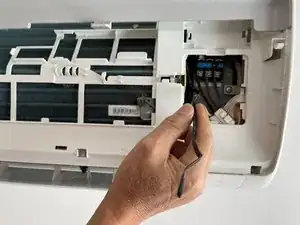

    twIDwUcoUZHZSIL6

    • Disconnect the black wire from the unit.

  6. JO4X52QUtXPmBHZO
    JO4X52QUtXPmBHZO
    mWqUtCwSxBYyvXBn
    s4YAV1dVRnXvOXD1

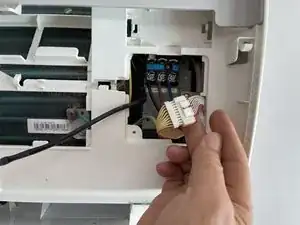

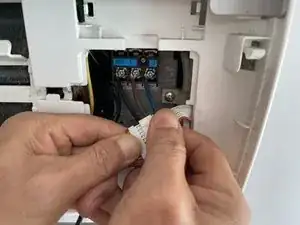

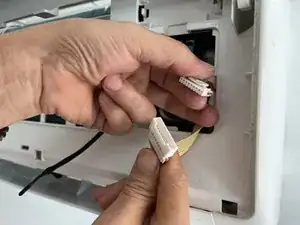

    • Disconnect the two parts of the white wire.

  7. wRlBKGcPIwpCSQGD
    wRlBKGcPIwpCSQGD
    eWnOovKtItIFWorg
    TvOAagbV3kVuPqex

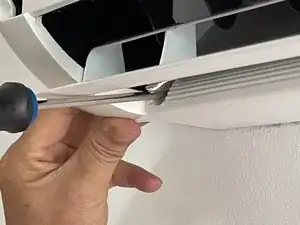

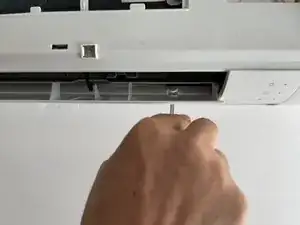

    • Remove two screws from each side of the front panel.

  8. 2jEekGf5FjCTdEsN
    2jEekGf5FjCTdEsN
    SnHJ6TQnHHfmQsoO

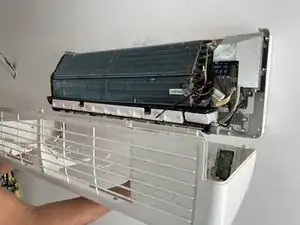

    E1hfLyTAXbCpmwaT

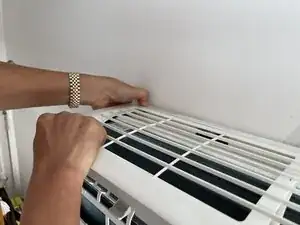

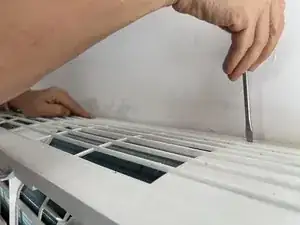

    • Completely remove the front panel.

    • If you can not remove it easily, use a spudger to carefully pry it open.

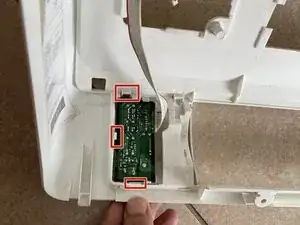

  9. R5VyXULEQBrxc1GJ
    R5VyXULEQBrxc1GJ
    txPKKOAZUKguvNxY
    f6F1Yrjvh2KDpKd1

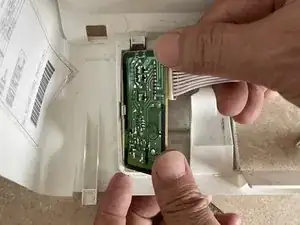

    • Remove the old circuit board from the three notches holding it in place.

    • Thread the bundled white wire through the slot and remove the circuit board completely from the unit.

    • Install a new circuit board.

  10. hfA3lrSKtAAokHnd
    hfA3lrSKtAAokHnd
    mPQD6BeGpUYc5hZZ

    • Reinstall the front panel.

    • Replace the two screws on each side of the front panel.

  11. ND4PKgPFPOoWoTbV
    ND4PKgPFPOoWoTbV
    VjXRjXjjjMZv5KGC
    DrgXcXbJkWnmLEFu

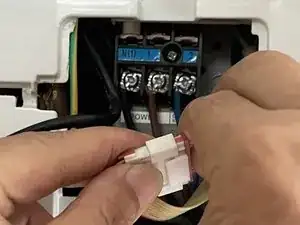

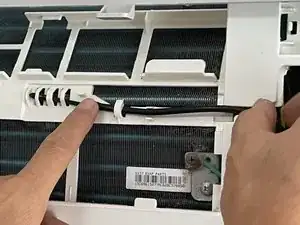

    • Reconnect the white wires.

    • Thread the black wire through the slots.

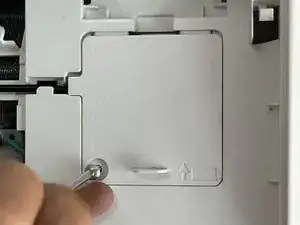

  12. xPbOFftCbxixMmtM

    • Reinstall the small cover.

  13. 2eAdMCPsrCjgPqR4
    2eAdMCPsrCjgPqR4
    ftIZhRx5gWDJF6ul

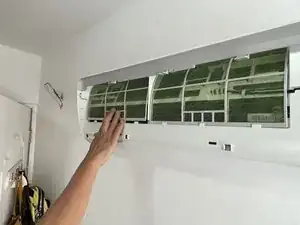

    • Reinstall the filter.

  14. F3WnZjfbV1MXa1Xi
    F3WnZjfbV1MXa1Xi
    JROGlhuOCFlIh26r

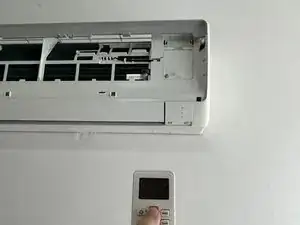

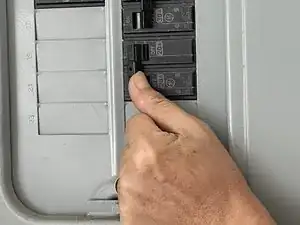

    • Restore the power to check if the unit is functioning.

  15. faQHNIhARTCXPsRI
    faQHNIhARTCXPsRI

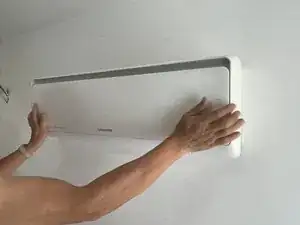

    XbG3W6vvnNQv1EGw
    e23diUlNe5OoSJDP

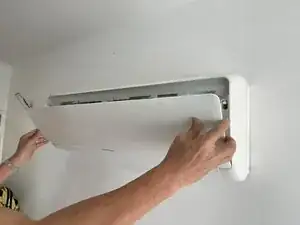

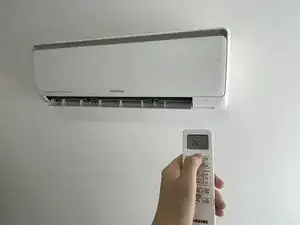

    • If the unit is functioning, turn the fan off, and reinstall the front grille panel.

    • At the end, you can turn it on again.
