If your laptop does not hold a charge or doesn't turn on unless it is plugged into its charger, the battery may have went bad. To keep your laptop running optimal and maintain a high charge duration, a battery replacement may be necessary.
Werkzeuge
-
-
Place the computer upside down.
-

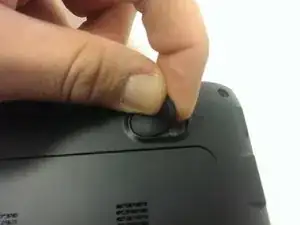

Remove 2 rubber pads, by prying up on them.
-
Remove the seven 6.5mm screws on exterior of computer.
-
-
-

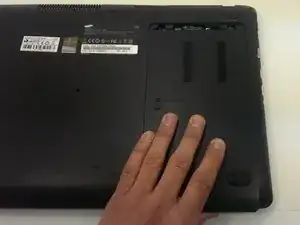

Remove the panel by sliding it down and lifting it away from the computer.
-

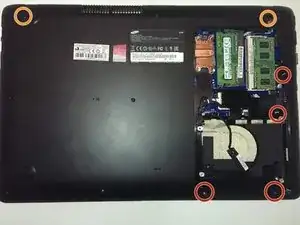

Remove the four 4.4mm screws that are underneath the panel.
-
Remove the two 6.5mm screws that were underneath the rubber pads.
-
-
-

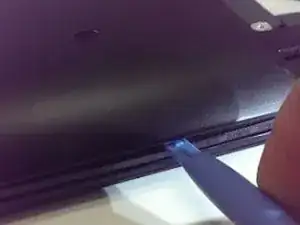

Using the plastic opening tool, pry plastic panel away from computer.
-
Remove the panel from computer, once all tabs are broken free.
-
-
-

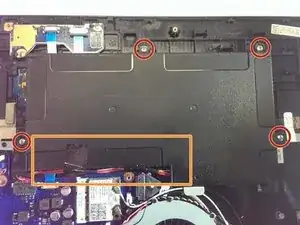

Remove the four 3.5mm screws holding the battery.
-
Peel back the tape securing the wires to the battery.
-

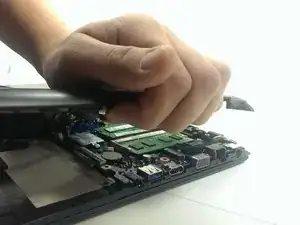

Lift and remove the battery from its location.
-
-
-

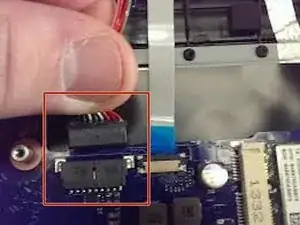

Disconnect the battery harness from computer.
-
Completely remove the battery and replace it.
-
To reassemble your device, follow these instructions in reverse order.
