Samsung ATIV Book 4 Screen Replacement

Geschrieben von: Daniel
  • Kommentare: 1
Samsung ATIV Book 4 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 30 Minuten

Einleitung

If your laptop is experiencing display issues such as bad resolution, flickering, or black dots, and/or is physically damaged or broken, replacing the screen may solve these problems.

  1. rtmkhbOSdHHSBmL1
    rtmkhbOSdHHSBmL1
    mgcHrRln5CuvqJTW

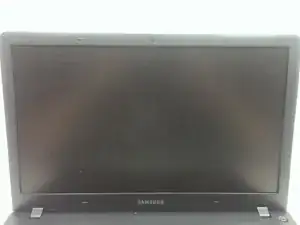

    • Be sure the computer is off, and open the computer so that the screen is showing.

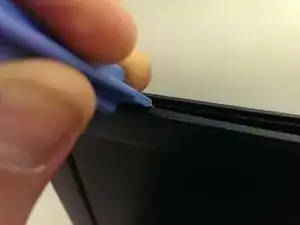

    • Use the plastic opening tool and pry away the casing surrounding the screen. Remove the casing entirely.

  2. ZL6WsiP5oUtKUmXy

    • Remove the four 3.5mm screws securing the screen.

    • Tilt the screen back before removing the screws, there is a possibility it could fall and damage your keyboard or the ribbon cable connected to it.

  3. v1YVkJUNdlMhPyKk

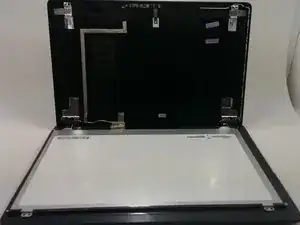

    • Place the screen gently on the keyboard.

  4. IKTP4SuxwFsMwYYO

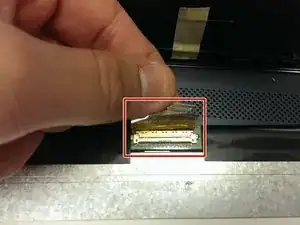

    • Remove the ribbon cable from the screen.

    • Remove and replace the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
