Samsung ATIV Book 7 NP740U3E-K01UB USB Ports Replacement

Geschrieben von: Jonathan Robidoux
  • Kommentare: 0
Samsung ATIV Book 7 NP740U3E-K01UB USB Ports Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the board containing the USB ports and the SD card reader on your laptop.

  1. TUXv3eByCDElqQ2j
    TUXv3eByCDElqQ2j
    JN5ImH6lv4MLi3Xm

    • Remove the ten 5 mm screws that hold the backplate using the Phillips #000 screwdriver.

  2. pFDxBv3YFAs2MOgZ

    • Remove the backplate.

  3. tUKMVZnMRhcffJkM

    • Remove the six 5mm screws that hold the battery by using the Phillips #0 screwdriver.

  4. YNgWnSCwGIkMBeSs

    • Disconnect the battery from the motherboard and remove the battery.

  5. uPcvXPARceIIrZGH
    uPcvXPARceIIrZGH
    kwTUVMSKXpLIW5YI

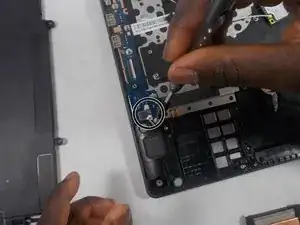

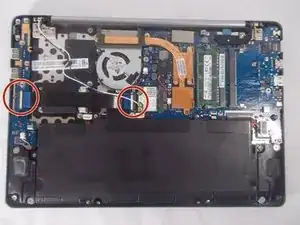

    • Disconnect the ribbon connecting the motherboard with the USB ports .

    • Disconnect the speaker from the board

  6. ZPAeNjdZhsRfOd65
    ZPAeNjdZhsRfOd65
    1HFMhiapNNoQoaUv

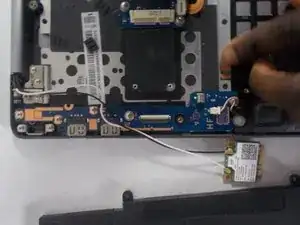

    • Unscrew the 5mm screws with the Phillips #0 screw driver.

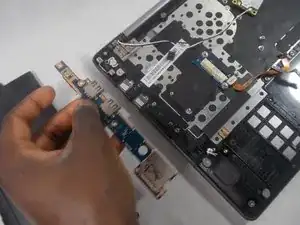

    • Lift the board out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
