Samsung ATIV Book 9 Lite Battery Replacement

Geschrieben von: Phat Tran
  • Kommentare: 0
Samsung ATIV Book 9 Lite Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

This guide may be used to remove the battery from the Samsung ATIV Book 9 Lite for replacement. Have a Phillips screw driver ready. Be sure to keep track of all screws removed and where they belong. Dispose of the broken battery properly.

  1. N5PgTgwXrUsh1mOY
    N5PgTgwXrUsh1mOY
    54gsMwPCOJTDHj6G

    • Put a protective lining such as a piece of cloth in between the screen and the keyboard when closed to protect your screen when performing this replacement.

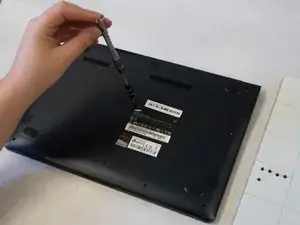

    • Turn the laptop upside down to show the screws holding the back cover on.

    • Using a Phillips #0, remove the ten 4mm screws located around the edges and one central.

  2. ORATxyuhywuaWapv
    ORATxyuhywuaWapv
    CfWgL3dpuO4s3IYD
    BwUJt2gjLJoXj5e4

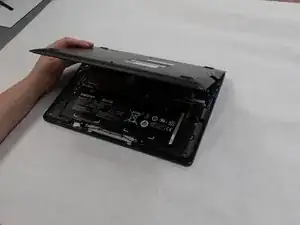

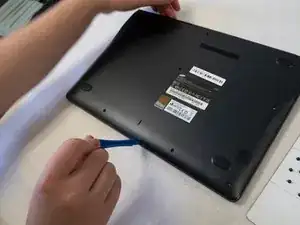

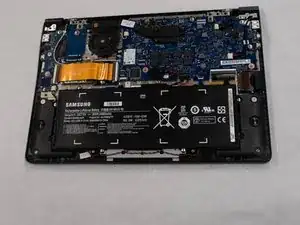

    • Use two plastic opening tools to separate the back cover from the laptop.

    • This may take some force because the back cover is snapped into place before the screws are used to keep it in place.

  3. lExNZWa1PNDhCXTi
    lExNZWa1PNDhCXTi
    YWrBXCMke4wvEH2k
    pml4vGdnaXAbwEnd

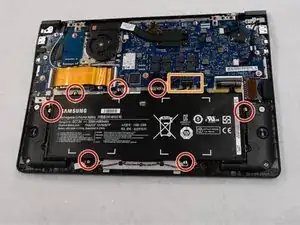

    • Using a Phillips #0, remove the seven 5mm screws highlighted in the image.

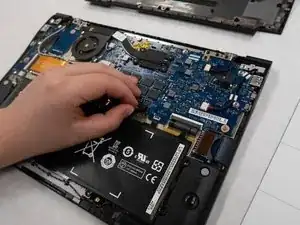

    • Using your hands, disconnect the battery's main cord from the main motherboard.

  4. vEtm3ZQNEwEcp4DS
    vEtm3ZQNEwEcp4DS
    ZLNpT36vHDYa2FND

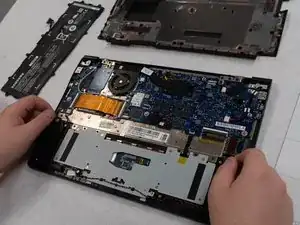

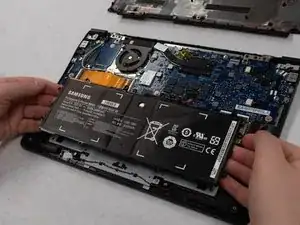

    • Using your hands remove the battery from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
