Samsung ATIV Book 9 Lite Charging Port Replacement

Geschrieben von: Phat Tran
  • Kommentare: 1
Samsung ATIV Book 9 Lite Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide may be used to remove the charging ports from the Samsung ATIV Book 9 Lite for replacement. Have a Phillips screw driver ready. Be sure to keep track of all screws removed and where they belong. When removing the port, be sure not to damage any cords connecting the charging port to the laptop. Dispose of the broken charging port properly.

  1. 1rHPTtfZ3cClIcVs
    1rHPTtfZ3cClIcVs
    mpXPJ5KVFgeKgJNU

    • Put a protective lining such as a piece of cloth in between the screen and the keyboard when closed to protect your screen when performing this replacement.

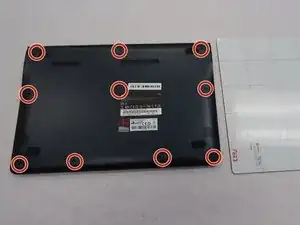

    • Turn the laptop upside down to show the screws holding the back cover on.

    • Using a Phillips #0, remove the ten 4mm screws located around the edges and one central.

  2. iMRGpGIloJoItVmZ
    iMRGpGIloJoItVmZ
    GcTBsXIE4sdKFYvY
    SxbiiFYIJNaZyNkp

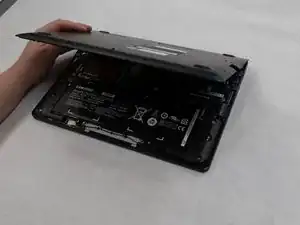

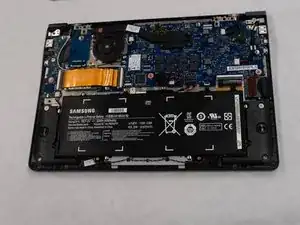

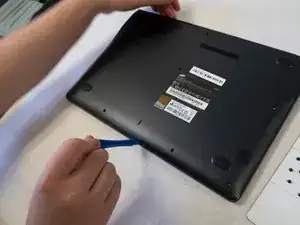

    • Use two plastic opening tools to separate the back cover from the laptop.

    • This may take some force because the back cover is snapped into place before the screws are used to keep it in place.

  3. RGuZVa5ovMakeRUY
    RGuZVa5ovMakeRUY
    1gFnYqAscyntZRHL
    VZBC6Ts5tLNmlVEV

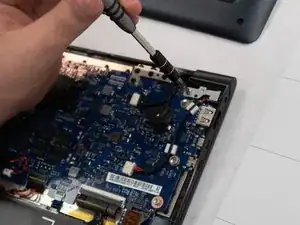

    • Using a Phillips #0, remove the one 3mm screw holding the metal holder/cover in place.

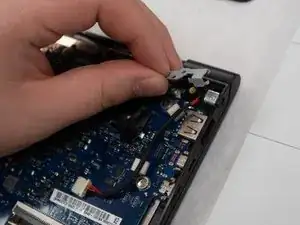

    • Using your hand, remove the metal holder that covers the port. This will take some jostling to remove.

  4. pQppVEe2sBh4RncD
    pQppVEe2sBh4RncD
    gYG1AMhgcpGqPrLZ
    kMZ1SqINMmbinRTN

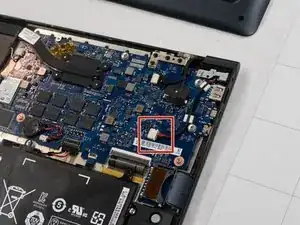

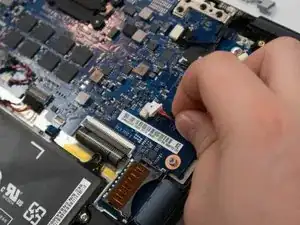

    • Using your hands, remove the cord that connects the charging port to the motherboard.

    • Do not pull on the cord as that might damage it; remove it by pulling on the white wire head.

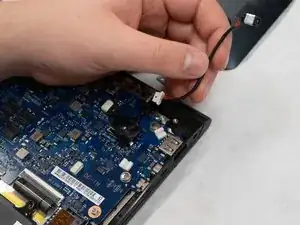

    • Using your hands, remove the cord from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
