Samsung ATIV Book 9 NP900X3K-S01US Battery Replacement

Geschrieben von: Arthur Guz
  • Kommentare: 0
Samsung ATIV Book 9 NP900X3K-S01US Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

Is your Samsung ATIV Book 9 experiencing any power related battery issues such as power loss or screen flickering? This guide is here to assist you with any issues concerning the battery. A Phillips #00 screwdriver is needed to remove the battery for replacement.

  1. UCXsW6nIXCDHrwON
    UCXsW6nIXCDHrwON
    4AP6k5bCk2uJvc4h
    fCpRpdprg4VKxlLw

    • Make sure that the Samsung ATIV Book 9 is powered off and not connected to any power outlets.

    • Close the device and rest it on a flat surface.

    • Flip the device over to access the ten 4.3 mm screws located on the bottom case.

    • Remove all ten screws using the Phillips #00 screwdriver.

  2. DY3SJbWtgS2xAgpH
    DY3SJbWtgS2xAgpH
    AgNXInDHMDJMxmiY

    • Gently lift and remove the bottom case.

  3. qInDBXvZDlwsuf3b
    qInDBXvZDlwsuf3b
    62LH6WKQJjAhvOOu
    CrtiPqEhFIpOM4sg

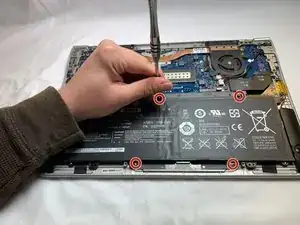

    • Using a Phillips #00 screwdriver, remove the six 4.3 mm screws securing the battery to the device.

  4. SpdQhVgW3yYK4FIq
    SpdQhVgW3yYK4FIq
    FJkuhWyVW5x1R4tu

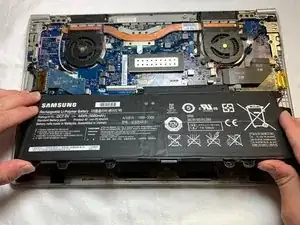

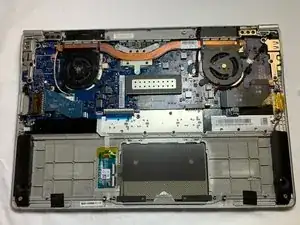

    • Carefully lift the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
