Einleitung
This guide is here to help replace and repair your fan assembly unit.
Werkzeuge
-
-

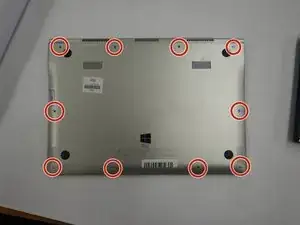

Using the Phillips #00 screwdriver, remove the 10 screws holding the back panel together.
-
Remove the back panel.
-
-
-

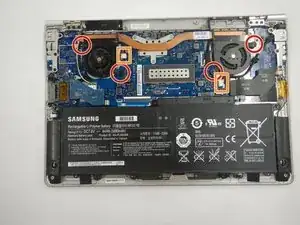

Using the Phillips #00 screwdriver, remove the 4 total screws (2 per each fan).
-
Disconnect the cable connections linking each fan to the motherboard with a spudger.
-
Remove each fan.
-
Abschluss
To reassemble your device, follow these instructions in reverse order or follow steps 4 to reassemble your laptop.
