Samsung ATIV Book 9 NP900X3K-S01US Speaker Replacement

Geschrieben von: Matthew James Weaver
  • Kommentare: 0
Samsung ATIV Book 9 NP900X3K-S01US Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will show the replacement for the speakers on a Samsung Ativ Book 9.

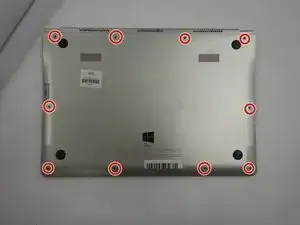

  1. d1NVystU6Ea2Y1TP

    • Unscrew the ten Phillips #00 screws off of the back panel.

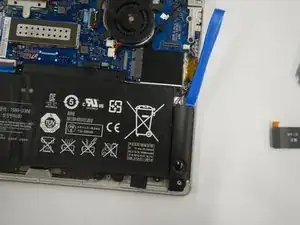

  2. XqJIuSl1DPFuNYBu
    XqJIuSl1DPFuNYBu
    tDpQcM3lKThi6pla

    • Use a plastic opening tool to pry up each of the speakers from their slots on either side of the battery.

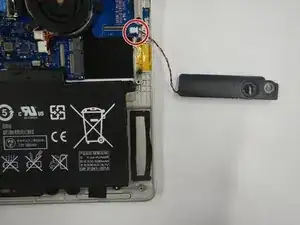

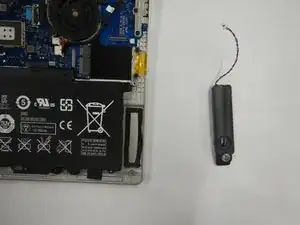

  3. CUYAiThUKmkBydWX
    CUYAiThUKmkBydWX
    eYUNZZrf1MLwUaC5

    • Using a spudger, disconnect the speaker cables from the motherboard.

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
