Einleitung

In order to replace the battery, have a Phillips screwdriver handy. Make sure you are able to keep track of all the screws removed and where they belong (a magnetic project mat would be helpful). If your battery is damaged and needs to be replaced, replacement batteries should be purchased from the laptop's original manufacturing company (batteries can be bought online or in person from a Samsung retailer). Ensure that the battery is disposed of properly, according to your city's ordinances.

  1. KGJY2FrCpHiuXWjn
    KGJY2FrCpHiuXWjn
    GInmReZMltJOgTYI
    5aGRl5BAdH6VSOVt
    • Turn the laptop upside down so that the underside of the laptop is facing you.

    • Use a Phillips #000 screwdriver to unscrew the 4.3 mm screws located on the edges and corners of the laptop.

  2. CKYif6M4OVFbuCYt

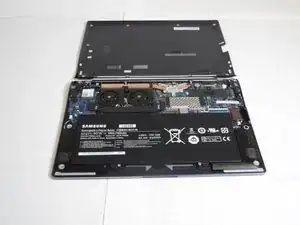

    • Lift the cover to reveal the interior of the laptop.

  3. OlrlkfeNKHcrIW6O
    OlrlkfeNKHcrIW6O
    oYrfKiWpsJhJGC5v
    TiiIA5iXO23tyINg

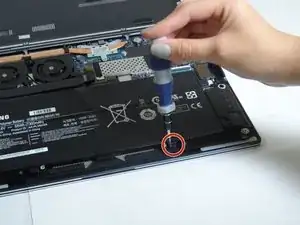

    • Unscrew the four 4.55 mm Phillips #000 screws on the edges of the battery.

  4. Kgd6QFmVqPLLUYNd
    Kgd6QFmVqPLLUYNd
    lVtlnODtfFskWBXv

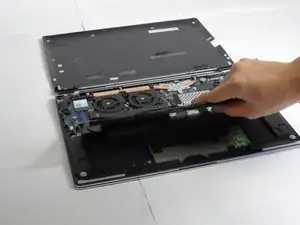

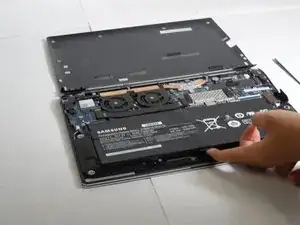

    • Lift to remove the battery from the laptop.

    • Place in the new battery to match the edges located on the laptop. Push on the top edge of the battery to secure it in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
