Samsung ATIV Book 9 Plus NP930X5J-S01US Fan Replacement

Geschrieben von: Sean Kim
  • Kommentare: 0
Samsung ATIV Book 9 Plus NP930X5J-S01US Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This replacement guide will cover how to remove the inner fan of the Samsung ATIV Book 9 Plus.

  1. QVnR1O1R6saiFEVI
    QVnR1O1R6saiFEVI
    ekveW1JFBCcZHBS2

    • Remove the ten 4.3mm Phillips #00 screws from the bottom cover of the laptop.

  2. m3JVBVkK5qcPhr4a
    m3JVBVkK5qcPhr4a
    INY1bG3w4VYCALTw
    kiNJy4wwX4ZWp3aN

    • Press the button to release the bottom cover.

  3. RP5JUe2ABNp1PqnG
    RP5JUe2ABNp1PqnG
    KFKRroXEfd2OcRYj

    • Remove the five 4.3mm Phillips #00 screws from the battery.

  4. D4CQrUiyBGJJxAVh
    D4CQrUiyBGJJxAVh
    qPkGOWw2QViBMSP3

    • Lift the battery with both hands and remove.

  5. Pg2mJsEoewHLBFWA
    Pg2mJsEoewHLBFWA
    QiSABvIlIUXXNs6B

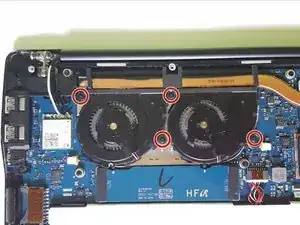

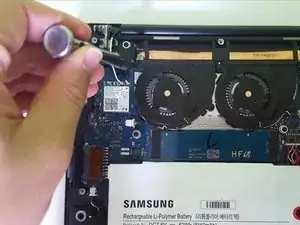

    • Remove the four 4mm Phillips #00 screws from the fans.

  6. JSuga235nCJ2jah1
    JSuga235nCJ2jah1
    lubhLWvC4KCp4BUo
    KikEuXNWAwwH3StI

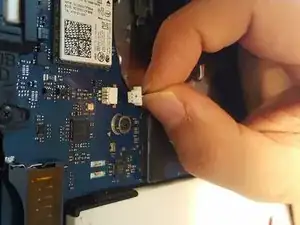

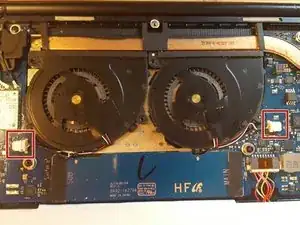

    • Disconnect the fans from the motherboard.

    • Remove the fans.

Abschluss

To reassemble your device, follow these instructions in reverse order.
