Einleitung

This guide shows you how to replace the camera on your phone.

  1. ktpDgWFFHTDmVQa1

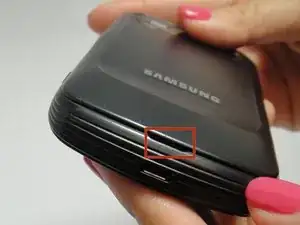

    • Use your fingernail or the plastic opening tool under the slit to pull the back cover off.

  2. Xwy55VGeRrfnCwPE

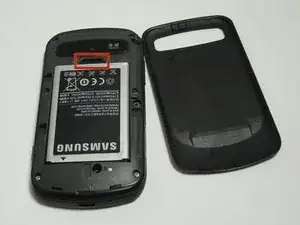

    • Making sure your hands are dry, insert your fingernail beneath the battery and remove it.

  3. hMVQMCNUYF4SWS5k
    hMVQMCNUYF4SWS5k
    TmsRHZvPb2wO1lNL
    XS2cYxTAilJYJxTI

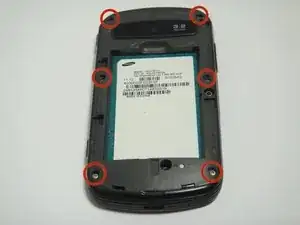

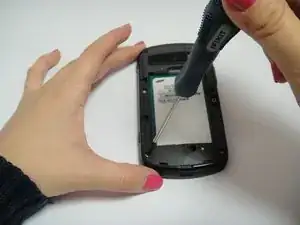

    • Use a Phillips #00 Precision Screwdriver to remove the six screws in the back of the phone.

    • Place the screws on a magnetic mat to prevent losing them.

  4. SbcRaMJkKyqIkSEE
    SbcRaMJkKyqIkSEE
    5n1OjSasRFcn2KBB
    SQbREJk6nlFwBqUs

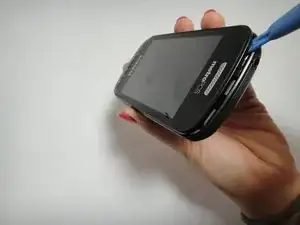

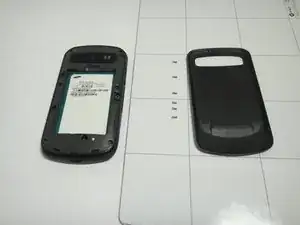

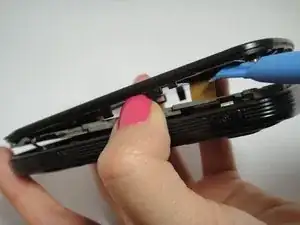

    • Place the Plastic Opening tool on the outside rim of the back cover.

    • Carefully circle around the rim to open the inside back cover completely.

    • Disconnect the ribbon cables and remove the back cover.

  5. R2Mw5DXiLVZpV2Q4
    R2Mw5DXiLVZpV2Q4
    T3Da4Gg5yO2FUBIG
    dAktNik2ThfNDTR2

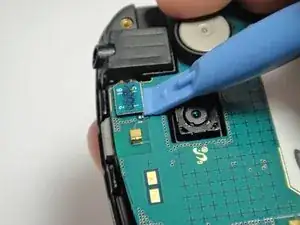

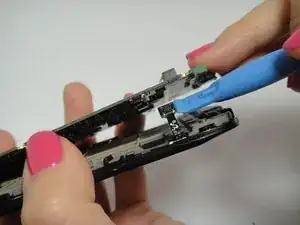

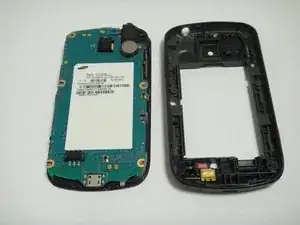

    • Carefully disconnect the volume button, the microphone connector, and the screen connector from the motherboard.

    • Pull back the side clips and lift the motherboard slowly.

  6. ACf1ZixUgSmSJJAh
    ACf1ZixUgSmSJJAh
    YeQH2Trck4oGAZMn

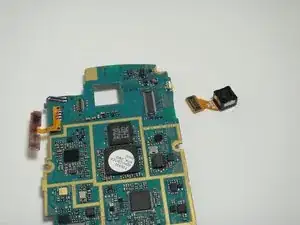

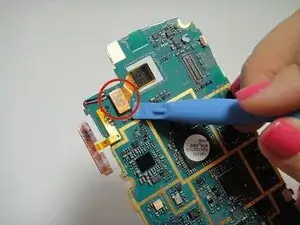

    • Use the plastic opening tool to disconnect the camera from the phone.

    • Connect the new camera into the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
