Samsung Alias 2 Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. 5wHZpTCNwjrE6m5L

    • push down the back cover of the phone, then take it out.

  2. mdXxO6XDxlguhcHl

    • Remove the battery.

  3. ElGkc6sTmPhliREi

    • Remove the two (4.1 mm) screws down the screen.

  4. DuPlJxHwn4OvNbXj
    DuPlJxHwn4OvNbXj
    GDFPfUMQAqIBnt5j

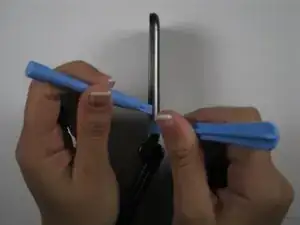

    • Remove the upper casing with a plastic opening tools.

  5. RlOjSyMOVkqM65E3

    • Use soldering iron to melt, and remove soldering joints of the speaker.

  6. RoGpixHTRFEFoYLl
    RoGpixHTRFEFoYLl
    4vOBxmKsVR1Ox2K6

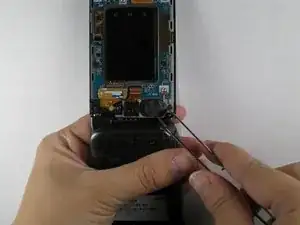

    • Use tweezers to remove the speaker from its place.

    • Note: There are two speakers. Make sure you know which one is broken before removing it.

  7. VghF1jMo2v3Rhlnh
    VghF1jMo2v3Rhlnh
    nYjXxkeDtnbOMPVS

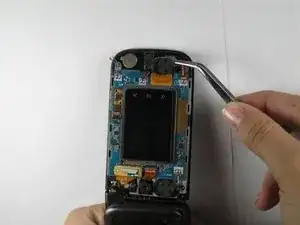

    • Use tweezers to insert the new speaker into the speaker slot.

  8. vecF2WiKj6GqMSAB

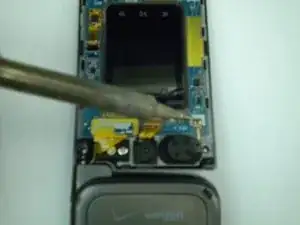

    • Solder a speaker ribbon to the logic board.

    • Note: be careful to match the right polarity before you solder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
